RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish

RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish

$333.00
$333.00
Skip to product information
RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
  • RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish
RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish

RAB A22-4T70W/480/MVS Type IV LED Area Light – Selectable 50W/60W/70W – 3000K/4000K/5000K – 8424-11236 Lumens – 480V – Pole Mount – Microwave Motion Sensor – White Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable Type IV Distribution 7-Pin Receptacle with Shorting Cap + 3-Pin Twistlock Photocell Microwave Sensor IP66 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 480V 100000 Rated Hours

Description

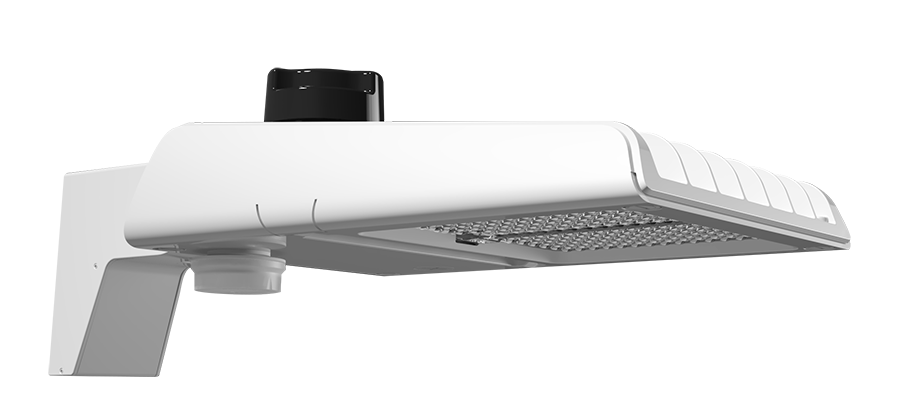

The RAB Lighting A22-4T70W/480/MVS LED pole-mount area light provides selectable 50W/60W/70W-3000W operation, 8424-11236 lumens, and selectable 3000K/4000K/5000K color temperature. It features Type IV optics, pole mounting, 480V operation, and an integrated microwave motion sensor in a white housing. This area light is suited for building perimeters and lot edges where illumination is directed outward from the mounting line, and is designed for fixed installation on compatible area-light poles or mounting arms.

Specifications

  • Vendor: RAB Lighting
  • MPN: A22-4T70W/480/MVS
  • Product Type: Area Light
  • Wattage: 50W, 60W, 70W
  • Input Voltage: 480V
  • Lumens: 8424-11236
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Light Distribution: Type IV
  • Dimming: 0-10V
  • Features: Wattage Selectable, Microwave Motion Sensor, 7-Pin Receptacle with Shorting Cap
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-WF6XXC
  • IP Rating: IP66
  • Location Rating: Wet
  • Mounting Type: Pole
  • Mounting Height: 15–20 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: '-40°F to 104°F (-40°C to 40°C)
  • Weight: 11.2 lbs
  • Finish: White
  • Dimensions: 20.25"L x 9.75"W x 5.5"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Parking Lots, Roadways, Commercial Campuses, Distribution Centers, Industrial Facilities
$333.00
$333.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
