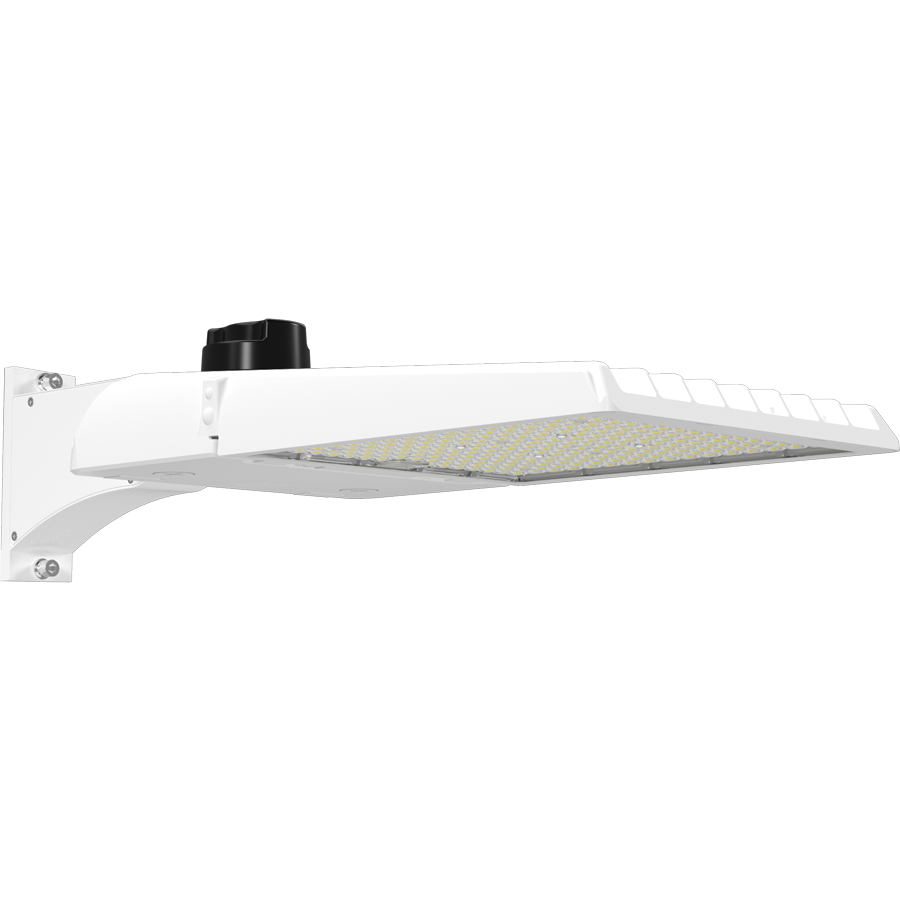

RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish

RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish

$308.00
$308.00
Skip to product information
RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
  • RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish
RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish

RAB AL22-150W Small Adjustable LED Area Light – Selectable 80W/100W/150W – Selectable 3000K/4000K/5000K – Adjustable Type III/IV/V Distribution – 12720-22951 Lumens – 120-277V – White Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable Optic Switchable Type III Type IV Type V 7-Pin Receptacle with Shorting Cap + 3-Pin Twistlock Photocell IP66 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

The RAB Lighting AL22-150W Small Adjustable LED area light is configured with selectable 80W/100W/150W operation, 12720-22951 lumens, and selectable 3000K/4000K/5000K color temperature. It features Type V light distribution, 120-277V input, and white finish. Use this area light open parking and general area-lighting layouts that require broad, symmetrical coverage. Selectable wattage and color temperature provide installation flexibility by allowing light output and color appearance to be adjusted during installation.

Specifications

  • Vendor: RAB Lighting
  • MPN: AL22-150W
  • UPC: 192552049870
  • Product Type: Area Light
  • Wattage: 80W, 100W, 150W
  • Input Voltage: 120-277V
  • Lumens: 12720-22951
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Light Distribution: Type III, Type IV, Type V
  • Dimming: 0-10V
  • Features: Wattage Selectable, Optics Adjustable, 7-Pin Receptacle with Shorting Cap
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-H9Z27G
  • IP Rating: IP66
  • Location Rating: Wet
  • Mounting Type: Pole
  • Mounting Height: 20–25 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Weight: 11 lbs
  • Finish: White

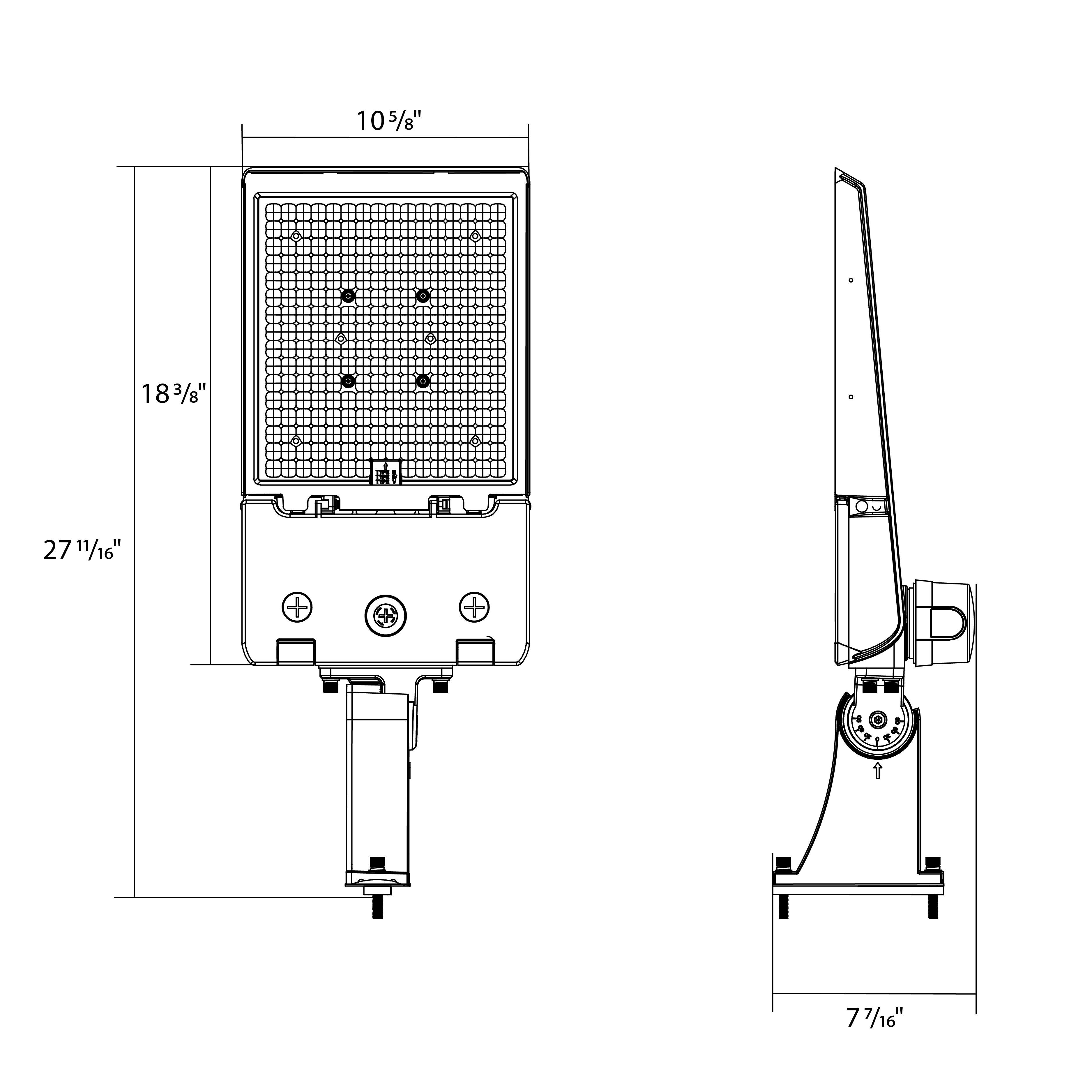

  • Dimensions: 27.6875"L x 10.625"W x 7.4375"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Parking Lots, Roadways, Commercial Campuses, Distribution Centers, Industrial Facilities
