RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish

RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish

$1,605.00
$1,605.00
Skip to product information
RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
  • RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish
RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish

RAB ALEDLAT/480/7PR Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 480V – Pole Mount – NEMA 7-Pin Photocontrol Receptacle – Bronze Finish

UL Certified DLC Premium Listed Wattage Adjustable Type AT Automotive Dealership Optics 7-Pin Receptacle IP66 Rating 0-10V Dimmable 10kV Surge Protection Wet Location Rated 80+ CRI 480V 100000 Rated Hours

Description

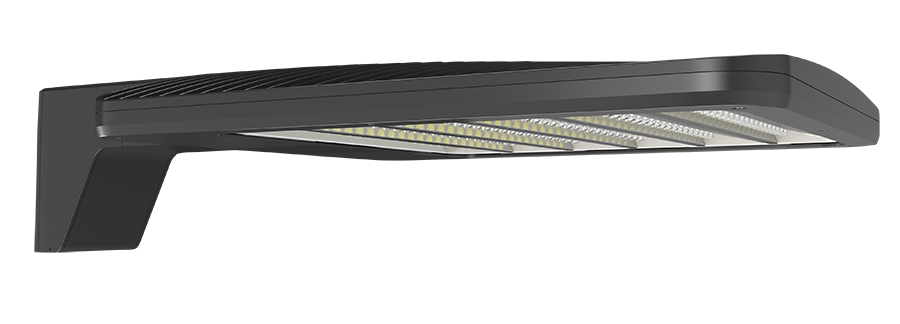

The RAB Lighting ALEDLAT/480/7PR LED pole-mount area light provides selectable 170W-260W operation, 24510-36458 lumens, and 5000K color temperature. It features Type AT light distribution, pole mount, 480V input, NEMA 7-Pin Photocontrol Receptacle, and bronze finish. This area light is suited for automotive and parking-area layouts designed around an asymmetric forward-throw pattern and is designed for fixed installation on compatible area-light poles or mounting arms.

Specifications

  • Vendor: RAB Lighting
  • MPN: ALEDLAT/480/7PR
  • Product Type: Area Light
  • Wattage: 170W, 220W, 260W
  • Input Voltage: 480V
  • Lumens: 24510-36458
  • CCT: 5000K
  • CRI: 80+
  • Light Distribution: Auto Dealership Optic
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, 7-Pin Receptacle
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-WTL635
  • IP Rating: IP66
  • Location Rating: Wet
  • Mounting Type: Pole
  • Mounting Height: 25–35 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Weight: 27.3 lbs
  • Finish: Bronze
  • Dimensions: 28.875"L x 10.9625"W x 6.375"H
  • Rated Hours: 100000
  • Warranty: 10 Years
  • Applications: Parking Lots, Roadways, Commercial Campuses, Distribution Centers, Industrial Facilities
$1,605.00
$1,605.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ◈ LM79 Report ◫ IES File ⚙ Installation Instructions ↗ View Warranty Information
