RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish

RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish

$1,467.00
$1,467.00
Skip to product information
RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
  • RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish
RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish

RAB ALEDLATWMW Type AT LED Area Light – 170W-260W Selectable – 5000K – 24510-36458 Lumens – 120-277V – Wall Mount – White Finish

UL Certified DLC Premium Listed Wattage Adjustable Type AT Automotive Dealership Optics IP66 Rating 0-10V Dimmable 10kV Surge Protection Wet Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

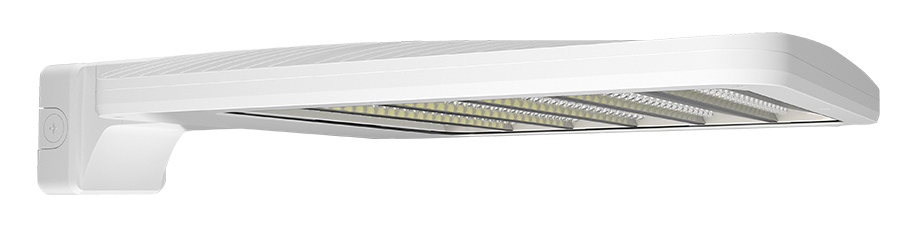

The RAB Lighting ALEDLATWMW LED wall-mount area light is configured with selectable 170W-260W operation, 24510-36458 lumens, and 5000K color temperature. It features Type AT optics, wall mounting, and 120-277V operation in a white housing. This area light is suited for automotive and parking-area layouts designed around an asymmetric forward-throw pattern and is designed for perimeter installation on a compatible wall-mounted arm or bracket. Selectable wattage allows light output to be adjusted during installation to meet project requirements.

Specifications

  • Vendor: RAB Lighting
  • MPN: ALEDLATWMW
  • Product Type: Area Light
  • Wattage: 170W, 220W, 260W
  • Input Voltage: 120-277V
  • Lumens: 24510-36458
  • CCT: 5000K
  • CRI: 80+
  • Light Distribution: Auto Dealership Optic
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-W910H7
  • IP Rating: IP66
  • Location Rating: Wet
  • Mounting Type: Wall
  • Mounting Height: 25–35 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Weight: 26.4 lbs
  • Finish: White
  • Dimensions: 28.875"L x 17.25"W x 5"H
  • Rated Hours: 100000
  • Warranty: 10 Years
  • Applications: Parking Lots, Roadways, Commercial Campuses, Distribution Centers, Industrial Facilities
