RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish

RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish

$1,004.00
$1,004.00
Skip to product information
RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
  • RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish
RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish

RAB ALEDM5TSFYB/7PR Type V LED Area Light – 40W-80W Selectable – 3000K – 10371-18802 Lumens – 120-277V – Slipfitter Mount – NEMA 7-Pin Photocontrol Receptacle – Black Finish

UL Certified DLC Premium Listed Wattage Adjustable Type V Distribution 7-Pin Receptacle IP66 Rating 0-10V Dimmable 10kV Surge Protection Wet Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

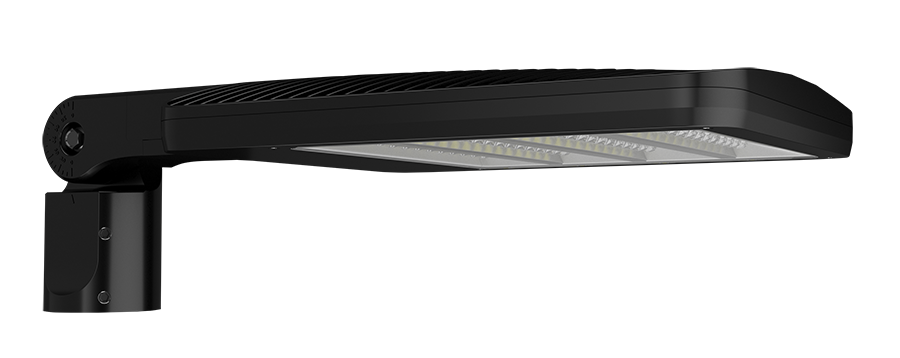

The RAB Lighting ALEDM5TSFYB/7PR LED slipfitter-mount area light provides selectable 40W-80W operation, 10371-18802 lumens, and 3000K color temperature. It features Type V light distribution, slipfitter mount, 120-277V input, NEMA 7-Pin Photocontrol Receptacle, and black finish. This area light is suited for open parking and general area-lighting layouts that require broad, symmetrical coverage and is designed for adjustable installation on a compatible tenon or mounting arm.

Specifications

  • Vendor: RAB Lighting
  • MPN: ALEDM5TSFYB/7PR
  • Product Type: Area Light
  • Wattage: 78W, 90W, 150W
  • Input Voltage: 120-277V
  • Lumens: 10371-18802
  • CCT: 3000K
  • CRI: 80+
  • Light Distribution: Type V
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, 7-Pin Receptacle
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-Q6EMD1
  • IP Rating: IP66
  • Location Rating: Wet
  • Mounting Type: Slipfitter
  • Mounting Height: 20–25 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Weight: 17.8 lbs
  • Finish: Black
  • Dimensions: 24.5"L x 12.5"W x 6.875"H
  • Rated Hours: 100000
  • Warranty: 10 Years
  • Applications: Parking Lots, Roadways, Commercial Campuses, Distribution Centers, Industrial Facilities
