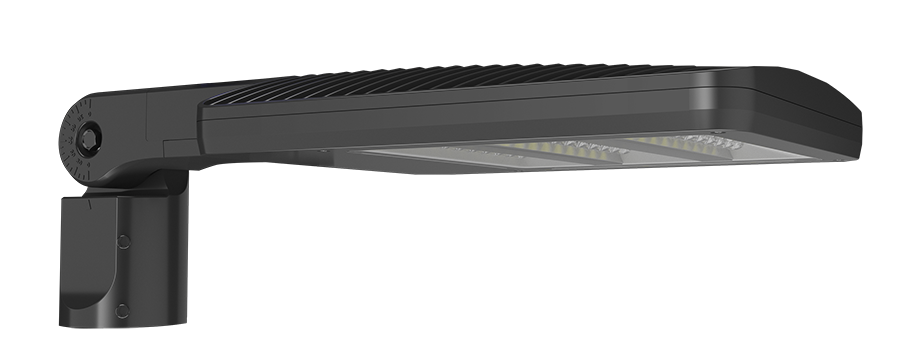

RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish

RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish

$680.00
$680.00
Skip to product information
RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
  • RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish
RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish

RAB ALEDS4TSF Type IV LED Area Light – 40W-80W Selectable – 5000K – 5812-10917 Lumens – 120-277V – Slipfitter Mount – Bronze Finish

UL Certified DLC Premium Listed Wattage Adjustable Type IV Distribution IP66 Rating 0-10V Dimmable 10kV Surge Protection Wet Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

The RAB Lighting ALEDS4TSF LED slipfitter-mount area light is specified with selectable 40W-80W operation, 5812-10917 lumens, and 5000K color temperature. It features Type IV optics, slipfitter mounting, and 120-277V operation in a bronze housing. This area light is suited for building perimeters and lot edges where illumination is directed outward from the mounting line, and is designed for adjustable installation on a compatible tenon or mounting arm. Selectable wattage allows light output to be adjusted during installation to meet project requirements.

Specifications

  • Vendor: RAB Lighting
  • MPN: ALEDS4TSF
  • Product Type: Area Light
  • Wattage: 40W, 60W, 80W
  • Input Voltage: 120-277V
  • Lumens: 5812-10917
  • CCT: 5000K
  • CRI: 80+
  • Light Distribution: Type IV
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-8SFNLC
  • IP Rating: IP66
  • Location Rating: Wet
  • Mounting Type: Slipfitter
  • Mounting Height: 15–20 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Weight: 14.7 lbs
  • Finish: Bronze
  • Dimensions: 22.6875"L x 12.5"W x 6.875"H
  • Rated Hours: 100000
  • Warranty: 10 Years
  • Applications: Parking Lots, Roadways, Commercial Campuses, Distribution Centers, Industrial Facilities
$680.00
$680.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
