RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish

RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish

$1,936.00
$1,936.00
Skip to product information
RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
  • RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish
RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish

RAB ALEDXLATWM/480/WS2 Type AT LED Area Light – 300W-385W Selectable – 5000K – 39963-49583 Lumens – 480V – Wall Mount – WattStopper Sensor with 20ft Lens – Bronze Finish

UL Certified DLC Premium Listed Wattage Adjustable Type AT Automotive Dealership Optics Multi-Level Motion Sensor IP66 Rating 0-10V Dimmable 10kV Surge Protection Wet Location Rated 80+ CRI 480V 100000 Rated Hours

Description

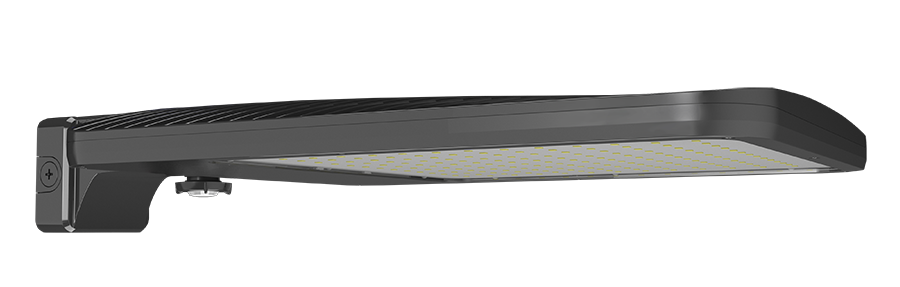

The RAB Lighting ALEDXLATWM/480/WS2 LED wall-mount area light provides selectable 300W-385W operation, 39963-49583 lumens, and 5000K color temperature. It features Type AT light distribution, wall mount, 480V input, WattStopper Sensor with 20ft Lens, and bronze finish. This area light is suited for automotive and parking-area layouts designed around an asymmetric forward-throw pattern and is designed for perimeter installation on a compatible wall-mounted arm or bracket.

Specifications

  • Vendor: RAB Lighting
  • MPN: ALEDXLATWM/480/WS2
  • Product Type: Area Light
  • Wattage: 300W, 345W, 385W
  • Input Voltage: 480V
  • Lumens: 39963-49583
  • CCT: 5000K
  • CRI: 80+
  • Light Distribution: Auto Dealership Optic
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, Multi-Level Motion Sensor with 20' Lens
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-53I90M
  • IP Rating: IP66
  • Location Rating: Wet
  • Mounting Type: Wall
  • Mounting Height: 25–35 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Weight: 36.3 lbs
  • Finish: Bronze
  • Dimensions: 32.5"L x 19"W x 5"H
  • Rated Hours: 100000
  • Warranty: 10 Years
  • Applications: Parking Lots, Roadways, Commercial Campuses, Distribution Centers, Industrial Facilities
$1,936.00
$1,936.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
