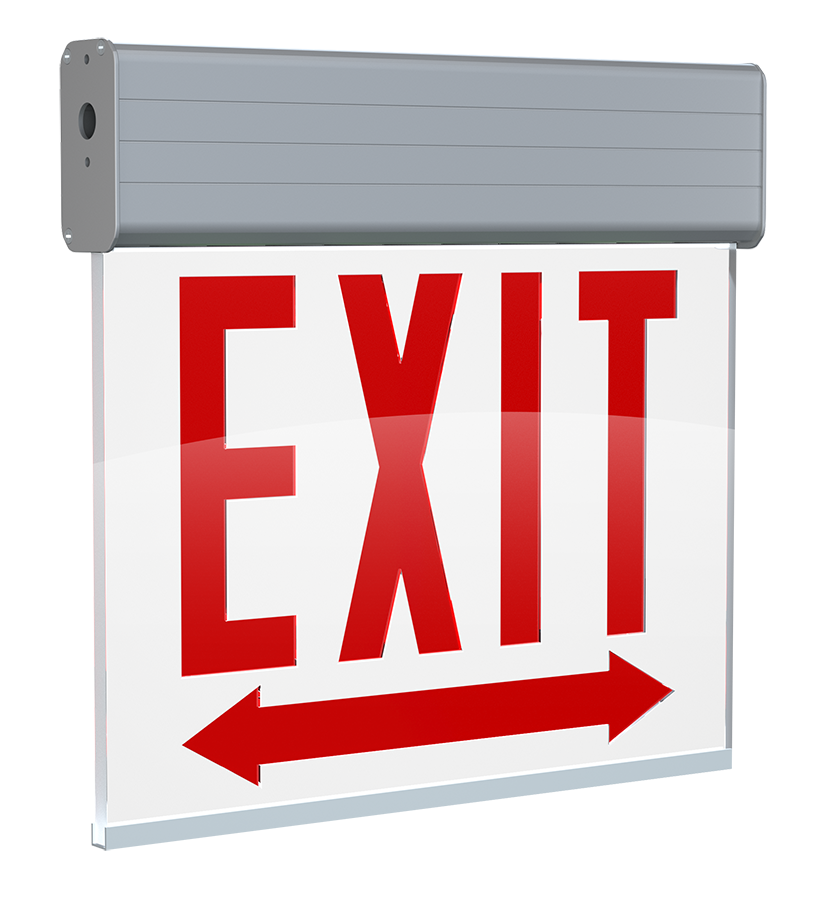

RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V

RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V

$118.00
$118.00
Skip to product information
RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V
  • RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V
  • RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V
  • RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V
  • RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V
RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V

RAB EXITEDGE-WPDACH Chicago Edge-Lit Exit Sign – Dual Face – White Panel – Aluminum Housing – Double Arrow – 120-277V

UL Certified OSHA Compliant City of Chicago Compliant California Title 24 Compliant California Title 20 Compliant NEC Compliant Damp Location Rated 120-277V

Description

The RAB Lighting EXITEDGE-WPDACH Chicago edge-lit exit sign features a dual-face configuration with a white panel, aluminum housing, double directional arrows, and operates on 120-277V. Designed to meet Chicago code requirements, it provides dependable emergency exit guidance.

Specifications

  • Vendor: RAB Lighting
  • MPN: EXITEDGE-WPDACH
  • UPC: 192552021470
  • Product Type: Exit Sign
  • Wattage: 3.3W
  • Input Voltage: 120-277V
  • Power Factor: ≥0.9
  • Chevron Direction: No Arrow
  • Letter Color: Red
  • Face Configuration: Double-Sided
  • Panel Color: White
  • Features: Chicago Approved
  • Certifications: UL924, NFPA 101, NEC, OSHA, FCC, Title 20
  • Location Rating: Damp
  • Mounting Type: Surface
  • Housing: Aluminum
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Weight: 3.2 lbs
  • Finish: Aluminum
  • Dimensions: 12.9375"W x 11.875"H x 4.4375"D
  • Warranty: 5 Years
  • Applications: Offices, Schools, Healthcare Facilities, Hotels, Commercial Buildings
$118.00
$118.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
