RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish

RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish

$274.00
$274.00
Skip to product information
RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
  • RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish
RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish

RAB H17XLB/6CP2 LED UFO High Bay Light – Selectable 150W/200W/240W – Selectable 3000K/4000K/5000K – 22696-37253 Lumens – 120-277V – 6ft Cord with NEMA 7-15 Plug – Black Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable 6 Foot Cord IP65 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

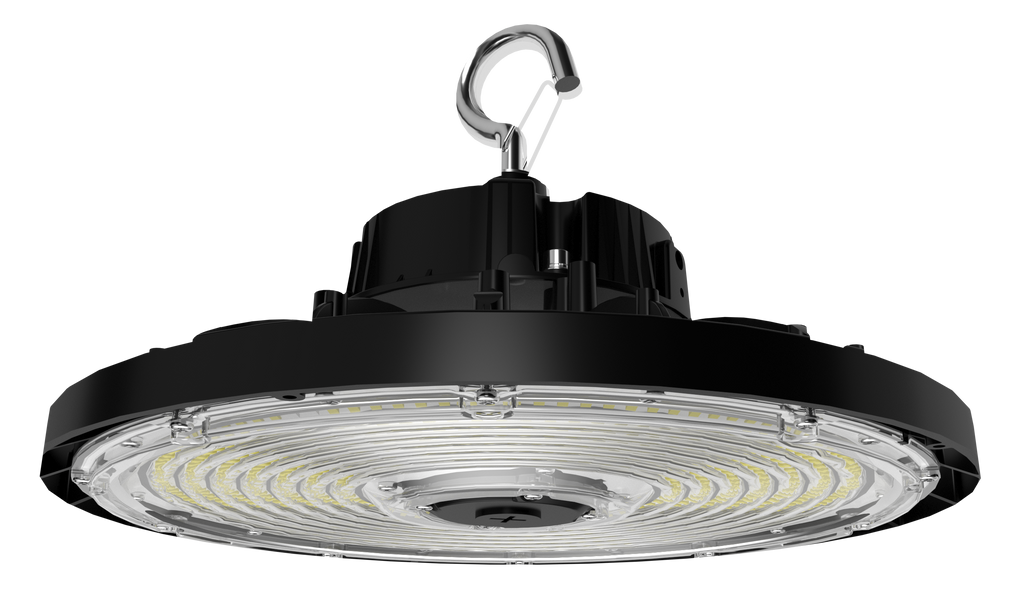

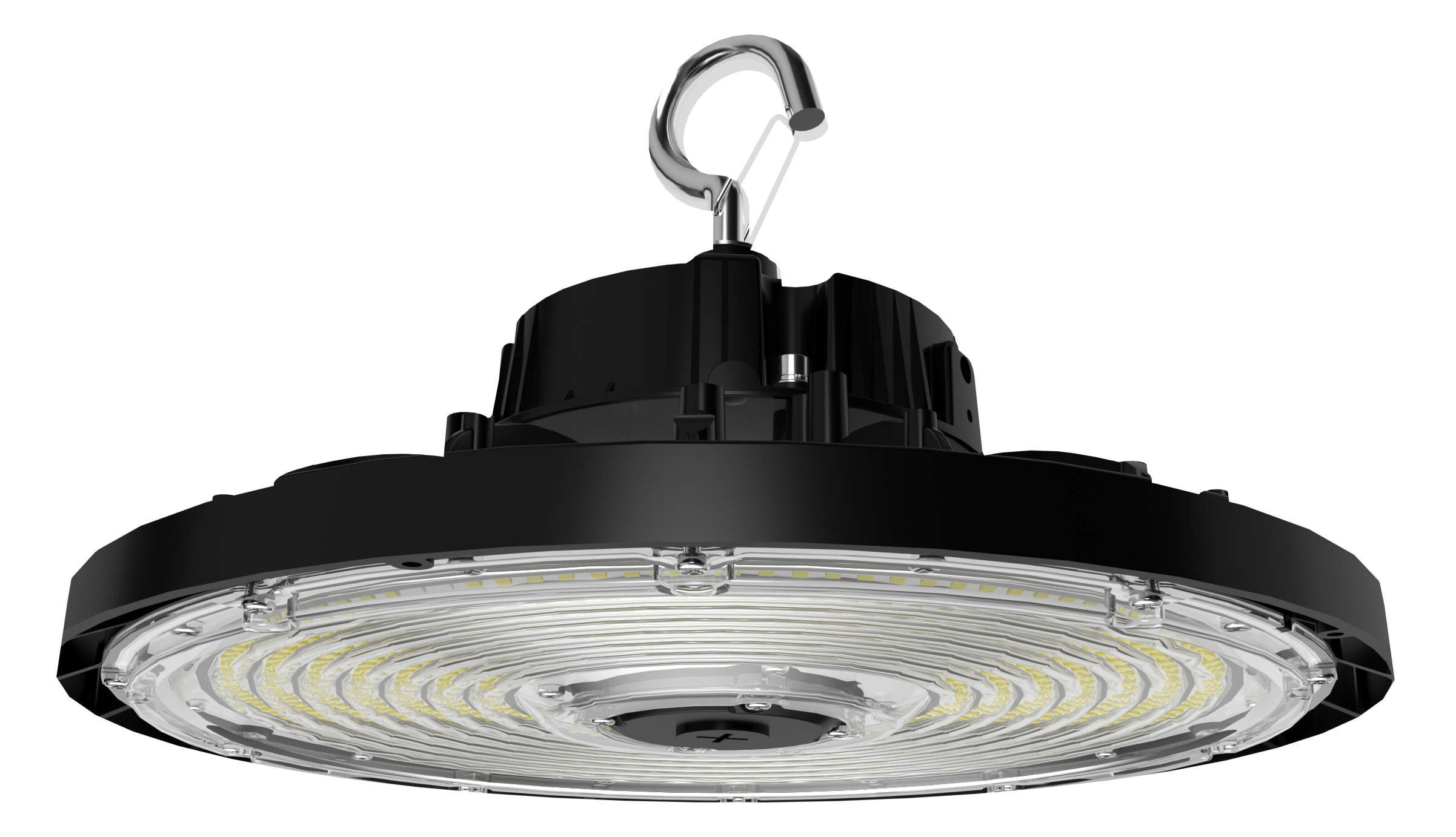

The RAB Lighting H17XLB/6CP2 LED UFO high bay delivers 22,696 to 37,253 lumens with selectable 150W, 200W, and 240W wattages and selectable 3000K, 4000K, and 5000K color temperatures. It includes a 6-foot cord with a NEMA 7-15 plug for 120-277V commercial installations.

Specifications

  • Vendor: RAB Lighting
  • MPN: H17XLB/6CP2
  • Product Type: UFO High Bay Light
  • Wattage: 150W, 200W, 240W
  • Input Voltage: 120-277V
  • Lumens: 22696-37253
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Wattage Selectable, CCT Selectable, 6 ft Cord w/ 120V NEMA 5-15P Straight Blade Plug
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-LED17S
  • IP Rating: IP65
  • Location Rating: Wet
  • Mounting Height: 25–30 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Weight: 7 lbs
  • Finish: Black
  • Dimensions: 12.625"D x 7.875"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Warehouses, Manufacturing Facilities, Distribution Centers, Gymnasiums, Industrial Facilities
