RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish

RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish

$655.00
$655.00
Skip to product information
RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
  • RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish
RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish

RAB H17XXL/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – White Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable IP65 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 480V 100000 Rated Hours

Description

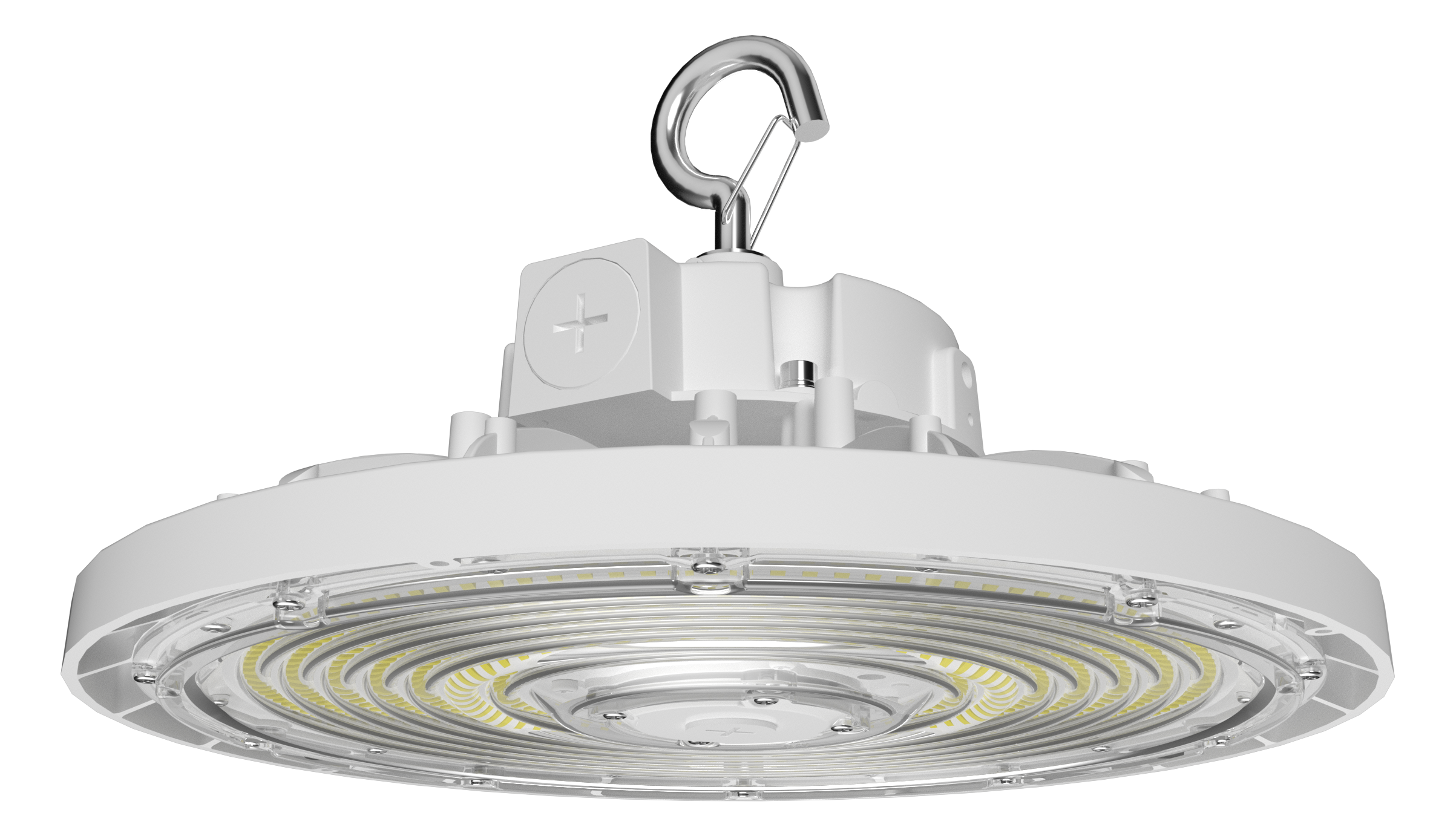

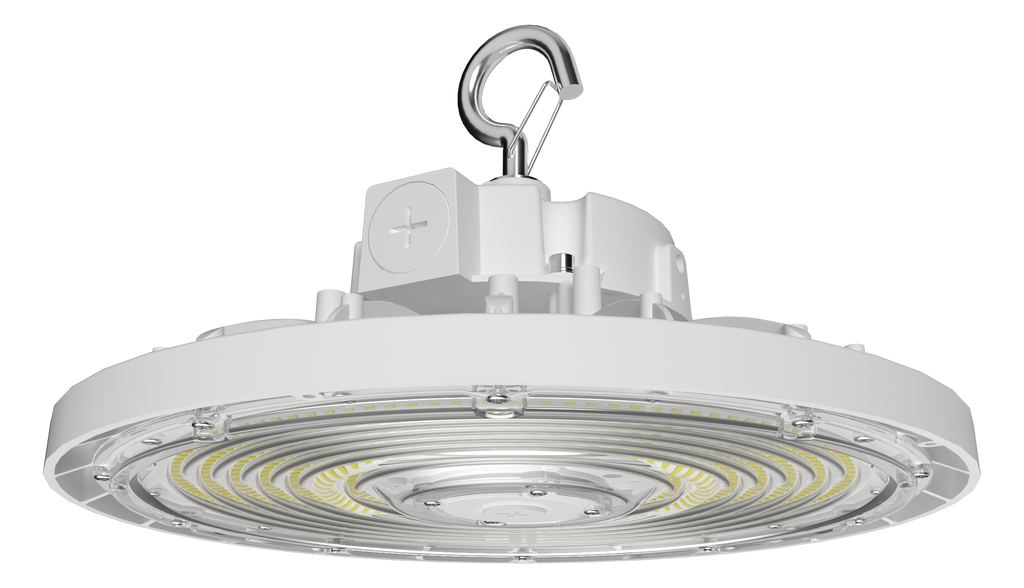

The RAB Lighting H17XXL/480 LED UFO high bay delivers 48,951 to 78,763 lumens with selectable 300W, 400W, and 500W performance and selectable color temperatures. Operating on 480V power, it is designed for warehouses, manufacturing facilities, and other industrial applications.

Specifications

  • Vendor: RAB Lighting
  • MPN: H17XXL/480
  • UPC: 192552034876
  • Product Type: UFO High Bay Light
  • Wattage: 300W, 400W, 500W
  • Input Voltage: 480V
  • Lumens: 48951-78763
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-Z168KT
  • IP Rating: IP65
  • Location Rating: Wet
  • Mounting Height: 30–40 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Weight: 17.4 lbs
  • Finish: White

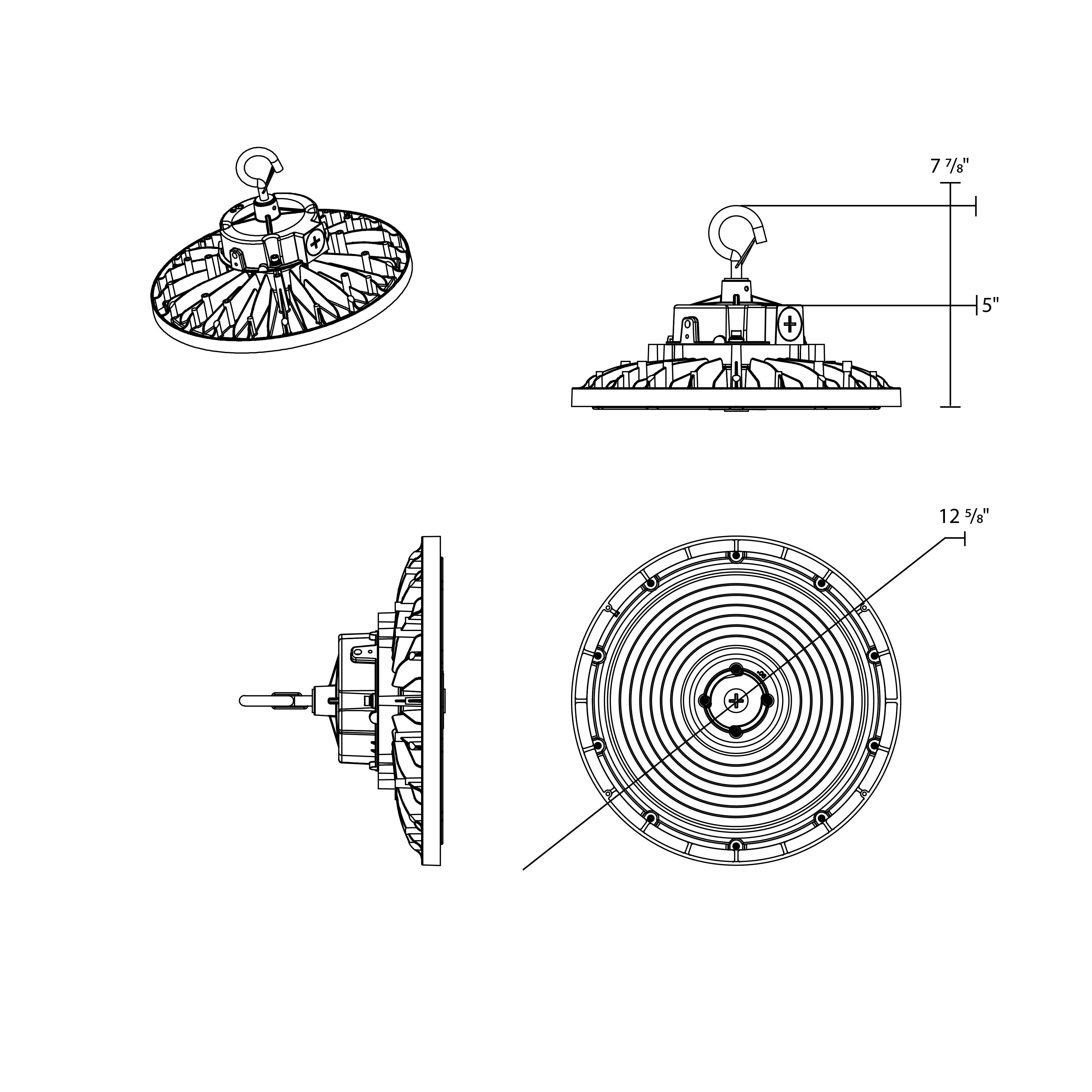

  • Dimensions: 16.5625"D x 11.0625"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Warehouses, Manufacturing Facilities, Distribution Centers, Gymnasiums, Industrial Facilities
