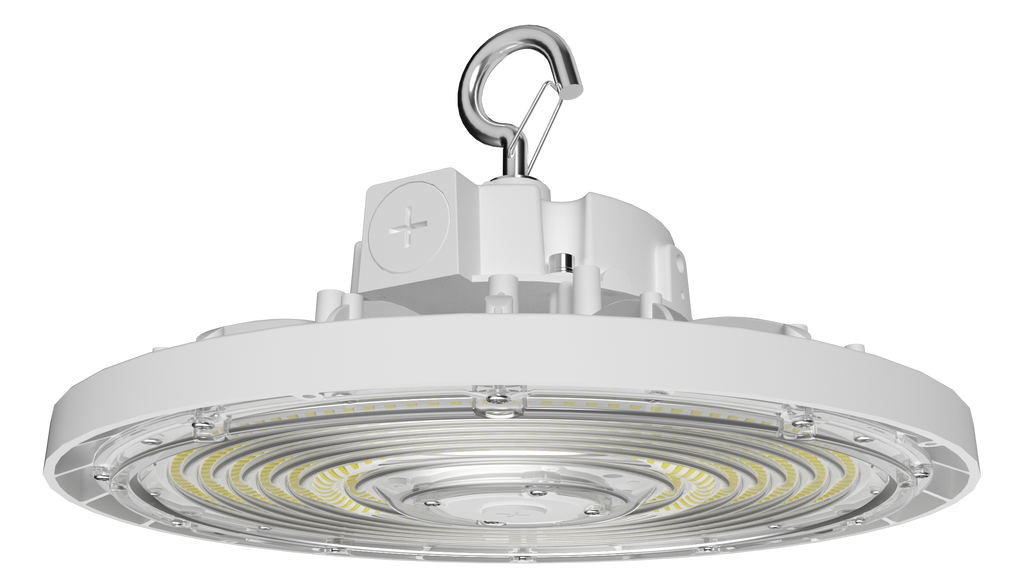

RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish

RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish

$701.00
$701.00
Skip to product information
RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
  • RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish
RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish

RAB H17XXL/480/6CPT4 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – 6ft Cord with L8-20P Twist Lock Plug – White Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable 6 Foot Cord IP65 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 480V 100000 Rated Hours

Description

The RAB Lighting H17XXL/480/6CPT4 LED UFO high bay produces 48,951 to 78,763 lumens with selectable 300W, 400W, and 500W performance. Operating on 480V power, it includes a 6-foot cord with an L8-20P twist-lock plug for industrial lighting applications.

Specifications

  • Vendor: RAB Lighting
  • MPN: H17XXL/480/6CPT4
  • Product Type: UFO High Bay Light
  • Wattage: 300W, 400W, 500W
  • Input Voltage: 480V
  • Lumens: 48951-78763
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, 6 ft Cord w/ 480V NEMA L8-20P Twistlock Plug
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-Z168KT
  • IP Rating: IP65
  • Location Rating: Wet
  • Mounting Height: 30–40 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Weight: 17.4 lbs
  • Finish: White
  • Dimensions: 16.5625"D x 11.0625"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Warehouses, Manufacturing Facilities, Distribution Centers, Gymnasiums, Industrial Facilities
$701.00
$701.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ◈ LM79 Report ▦ Spacing Tables ◫ IES File ⚙ Installation Instructions ↗ View Warranty Information
