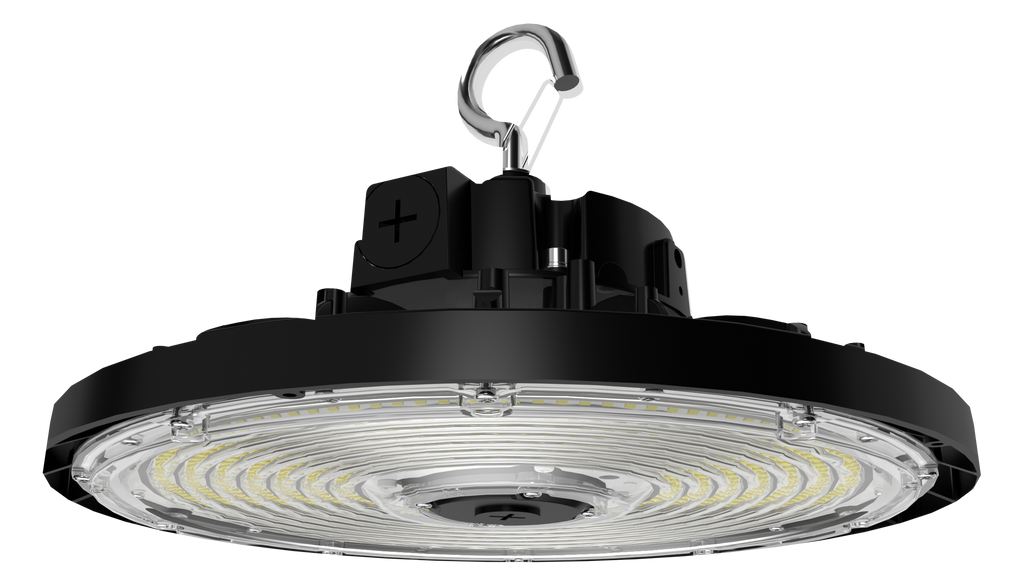

RAB H17XXLB/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – Black Finish

$655.00

RAB H17XXLB/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – Black Finish

Product: RAB H17XXLB/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – Black Finish

Name: RAB H17XXLB/480 LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 48951-78763 Lumens – 480V – Black Finish
Brand: RAB Lighting
SKU: H17XXLB/480
Price: 655.0 USD
Availability: InStock

Description

The RAB Lighting H17XXLB/480 LED UFO high bay provides selectable 300W, 400W, and 500W performance with light output ranging from 48,951 to 78,763 lumens. Operating on 480V power with selectable color temperatures, it is designed for warehouses, manufacturing facilities, and other high-ceiling applications.

Specifications

Vendor: RAB Lighting
MPN: H17XXLB/480
UPC: 192552034869
Product Type: UFO High Bay Light
Wattage: 300W, 400W, 500W
Input Voltage: 480V
Lumens: 48951-78763
CCT: 3000K, 4000K, 5000K
CRI: 80+
Dimming: 0-10V
Features: Wattage Selectable, CCT Selectable
Certifications: UL
DLC Rating: DLC Premium
DLC Product ID: S-Z168KT
IP Rating: IP65
Location Rating: Wet
Mounting Height: 30–40 ft
Housing: Die-Cast Aluminum
Lens: Polycarbonate
Operating Temperature: -40°F to 122°F (-40°C to 50°C)
Weight: 17.4 lbs
Finish: Black
Dimensions: 16.5625"D x 11.0625"H
Rated Hours: 100000
Warranty: 5 Years
Applications: Warehouses, Manufacturing Facilities, Distribution Centers, Gymnasiums, Industrial Facilities

$655.00

In Stock

Free Standard Shipping: Available on all RAB Lighting products.

Lead Time: 1–3 Business Days
