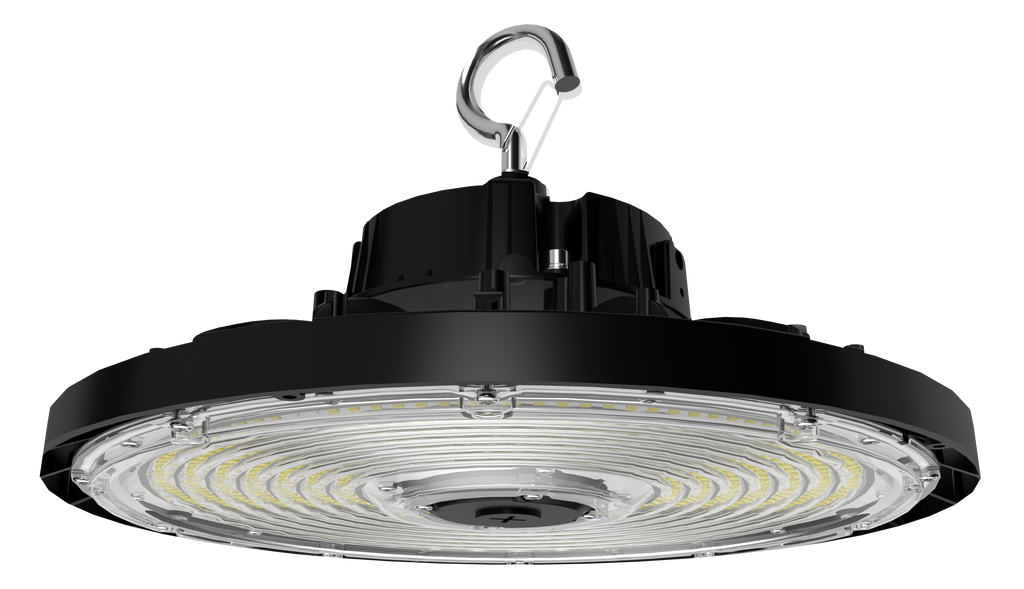

RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish

RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish

$623.00
$623.00
Skip to product information
RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
  • RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish
RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish

RAB H17XXLB/6CP LED UFO High Bay Light – Selectable 300W/400W/500W – Selectable 3000K/4000K/5000K – 49020-79203 Lumens – 120-277V – 6ft Cord with NEMA 5-15 Plug – Black Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable 6 Foot Cord IP65 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

The RAB Lighting H17XXLB/6CP LED UFO high bay produces 49,020 to 79,203 lumens with selectable 300W, 400W, and 500W wattages and selectable color temperatures. Operating on 120-277V power, it includes a 6-foot cord with a NEMA 5-15 plug.

Specifications

  • Vendor: RAB Lighting
  • MPN: H17XXLB/6CP
  • Product Type: UFO High Bay Light
  • Wattage: 300W, 400W, 500W
  • Input Voltage: 120-277V
  • Lumens: 49020-79203
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, 6 ft Cord w/ NEMA 5-15P Straight Blade Plug
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-YB69RP
  • IP Rating: IP65
  • Location Rating: Wet
  • Mounting Height: 30–40 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Weight: 17.4 lbs
  • Finish: White
  • Dimensions: 16.5625"D x 11.0625"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Warehouses, Manufacturing Facilities, Distribution Centers, Gymnasiums, Industrial Facilities
$623.00
$623.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
