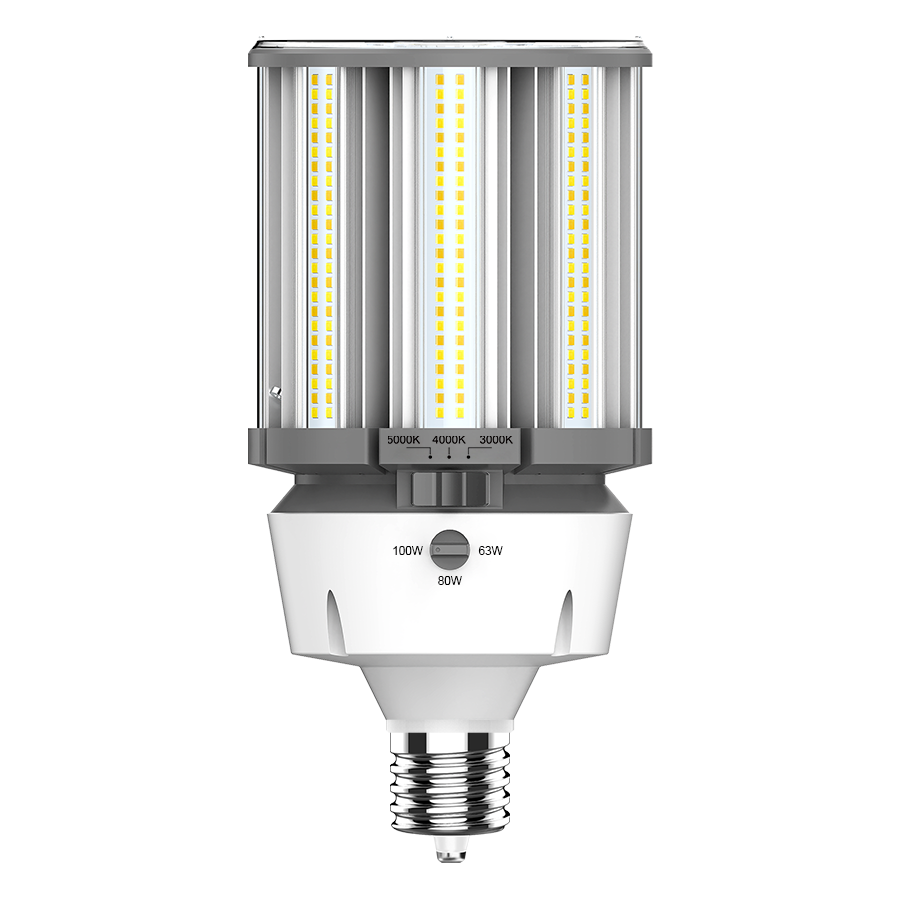

RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens

RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens

$141.00
$141.00
Skip to product information
RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
  • RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens
RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens

RAB HIDFA-100S-EX39-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 63W/80W/100W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 9135-14500 Lumens

UL Certified DLC Standard Listed Wattage & CCT Adjustable IP64 Rating Damp Location Rated 80+ CRI 120-277V 50000 Rated Hours

Description

The RAB Lighting HIDFA-100S-EX39-8CCT-BYP/5SP 5-pin post top LED retrofit lamp delivers 9,135-14,500 lumens with selectable 63W, 80W, and 100W operation, selectable 3000K, 4000K, and 5000K color temperatures, an EX39 mogul base, and 120-277V input. Adjustable performance allows precise light output selection.

Specifications

  • Vendor: RAB Lighting
  • MPN: HIDFA-100S-EX39-8CCT-BYP/5SP
  • UPC: 192552026994
  • Product Type: LED Bollard & Post Top Retrofit Bulb
  • Wattage: 63W, 80W, 100W
  • Wiring Type: Type B
  • Input Voltage: 120-277V
  • Power Factor: 0.9+
  • Surge Protection: 4 kV
  • Lumens: 9135-14500
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Lamp Base: Mogul EX39
  • Equivalent: 250/320/400W MH
  • Beam Angle: 360°
  • Features: Wattage Selectable, CCT Selectable
  • Certifications: UL, FCC, RoHS
  • DLC Rating: DLC Standard
  • DLC Product ID: PEXK7EN6
  • IP Rating: IP64
  • Location Rating: Damp
  • Housing: Polycarbonate
  • Operating Temperature: -22°F to 140°F (-30°C to 60°C)
  • Weight: 3.8 lbs
  • Dimensions: 10.5"L x 5.125"D
  • Rated Hours: 50000
  • Warranty: 5 Years
  • Applications: Walkways, Pathways, Commercial Campuses, Parks, Municipal Facilities
$141.00
$141.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

↓ Specification Sheet ◈ LM79 Report ◫ IES File ⚙ Installation Instructions ↗ View Warranty Information
