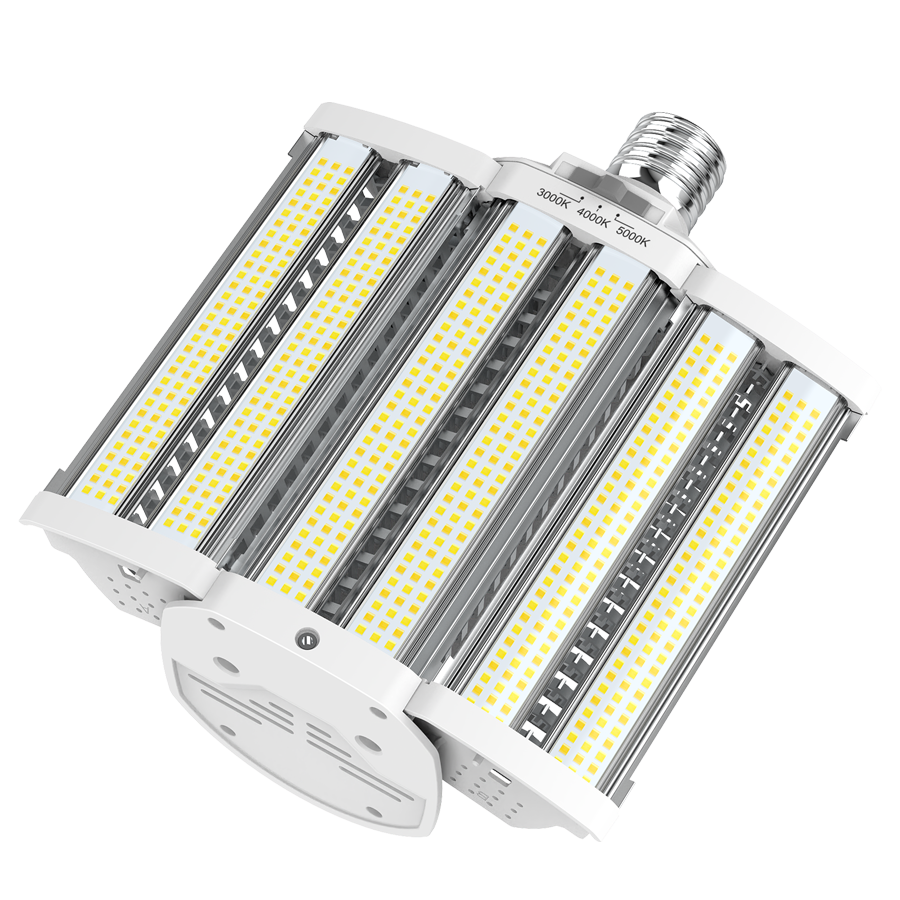

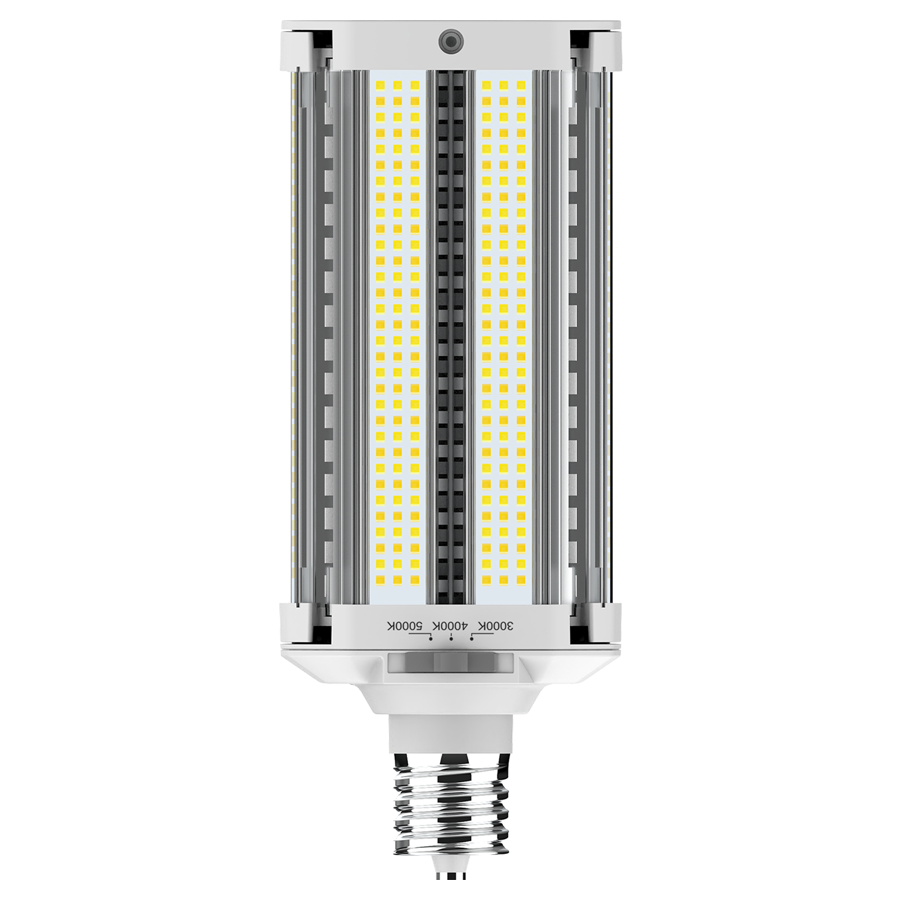

RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens

RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens

$171.00
$171.00
Skip to product information
RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens
  • RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens
  • RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens
  • RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens
  • RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens
  • RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens
  • RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens
RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens

RAB HIDFA-110-H-EX39-8CCT-BYP/5SP 5-Port Shoebox LED Retrofit Lamp – Type B Bypass – 110W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 16500 Lumens

UL Certified CCT Adjustable IP64 Rating Damp Location Rated 80+ CRI 120-277V 50000 Rated Hours

Description

The RAB Lighting HIDFA-110-H-EX39-8CCT-BYP/5SP 5-port shoebox LED retrofit lamp delivers 16,500 lumens at 110W with selectable 3000K, 4000K, and 5000K color temperatures, an EX39 mogul base, and 120-277V input. It provides a high-output LED replacement for compatible shoebox fixtures.

Specifications

  • Vendor: RAB Lighting
  • MPN: HIDFA-110-H-EX39-8CCT-BYP/5SP
  • UPC: 192552028707
  • Product Type: LED Shoebox Retrofit Bulb
  • Wattage: 110W
  • Wiring Type: Type B
  • Input Voltage: 120-277V
  • Power Factor: 0.9+
  • Surge Protection: 4 kV
  • Lumens: 16500
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Lamp Base: Mogul EX39
  • Equivalent: 400W MH
  • Beam Angle: 180°
  • Features: CCT Selectable, Sensor Port
  • Certifications: UL, FCC, RoHS
  • IP Rating: IP64
  • Location Rating: Damp
  • Housing: Polycarbonate
  • Lens: Polycarbonate
  • Lens Color: Clear
  • Operating Temperature: -22°F to 140°F (-30°C to 60°C)
  • Weight: 4.25 lbs
  • Finish: White
  • Dimensions: 9.0625"W x 11"L
  • Rated Hours: 50000
  • Warranty: 5 Years
  • Applications: Parking Lots, Building Perimeters, Commercial Campuses, Industrial Facilities, Municipal Facilities
$171.00
$171.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
