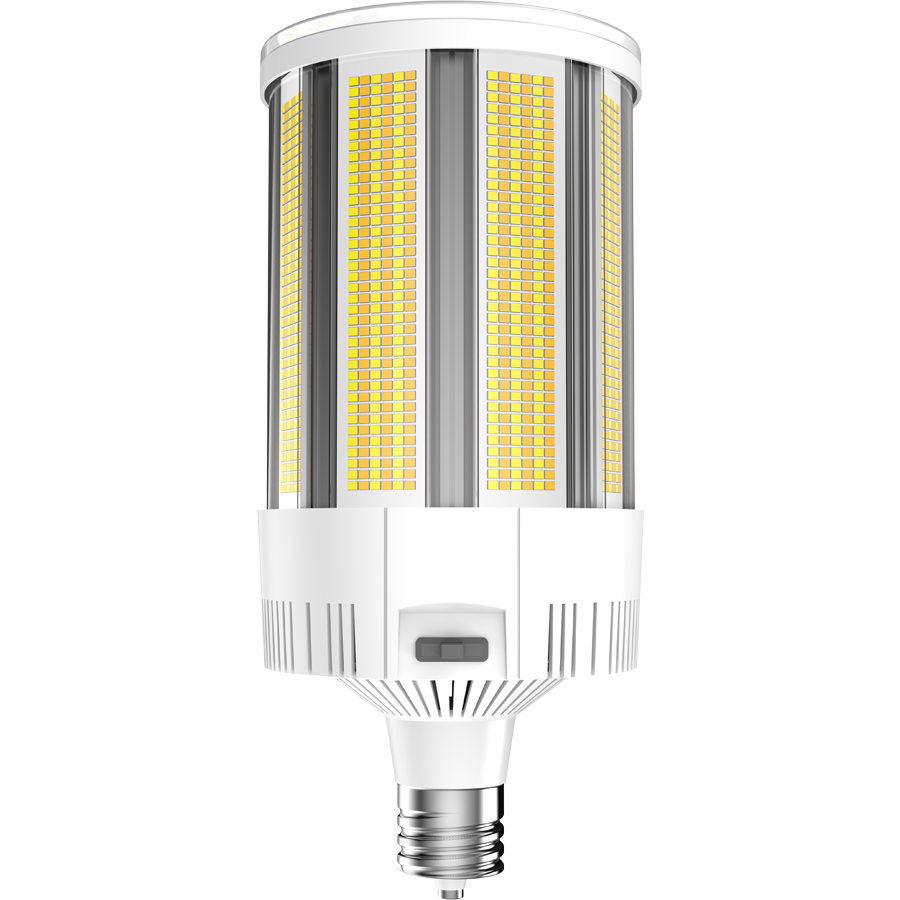

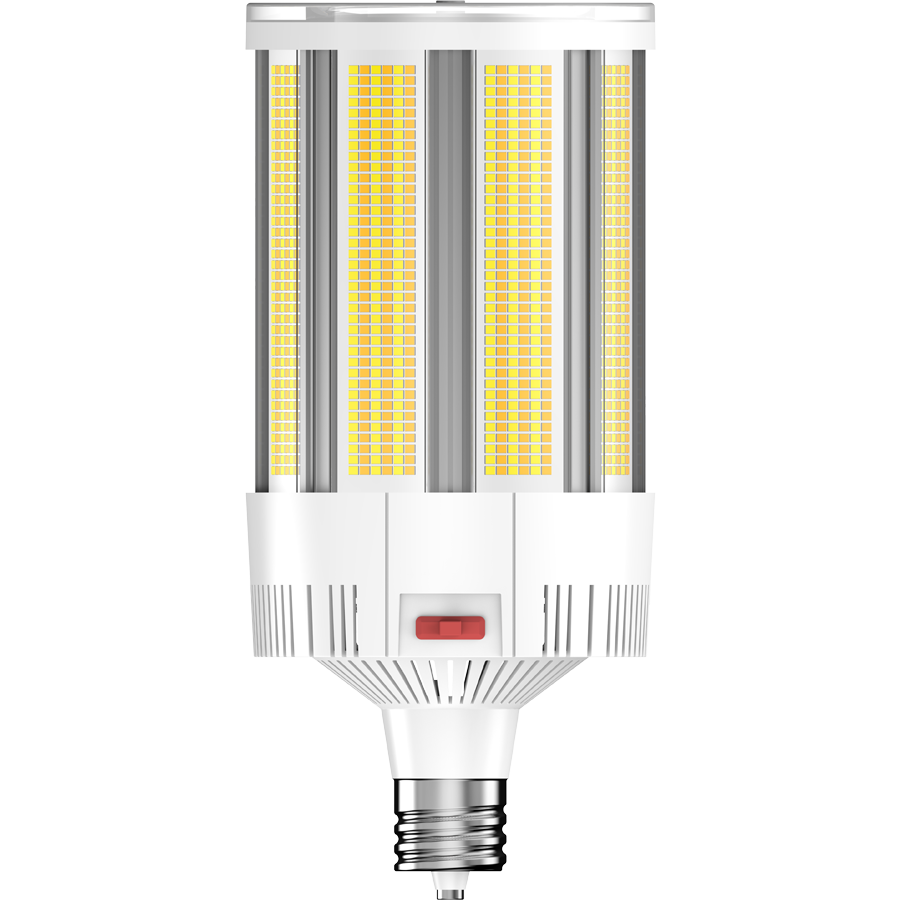

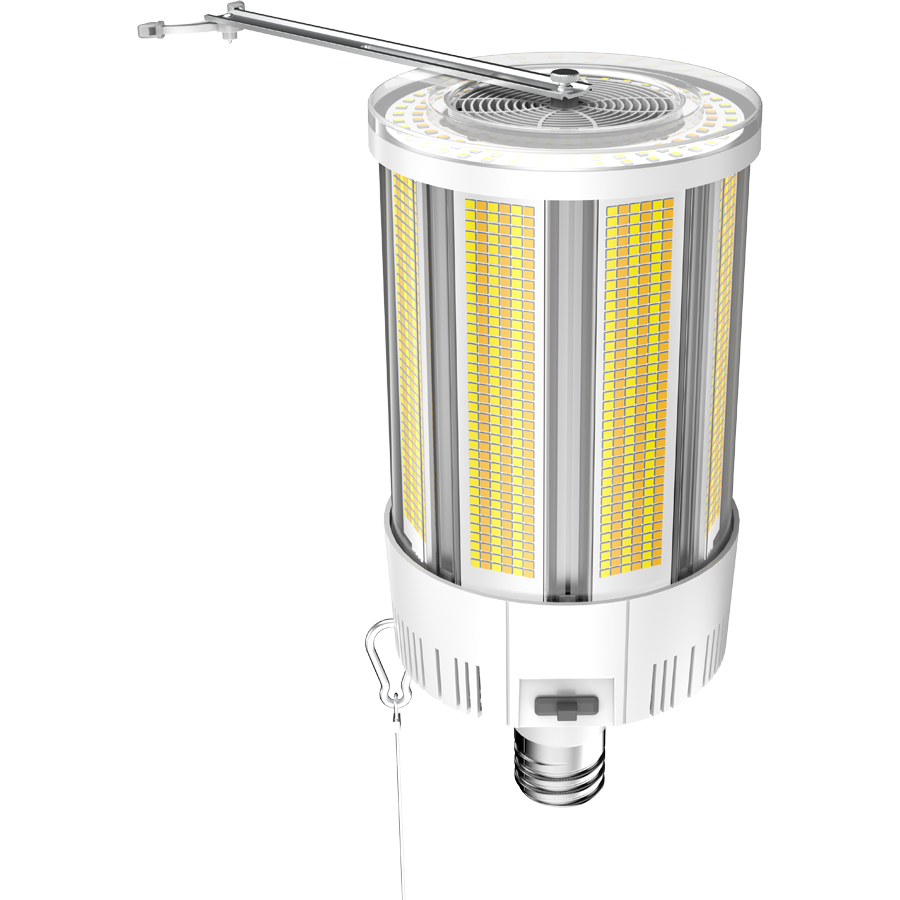

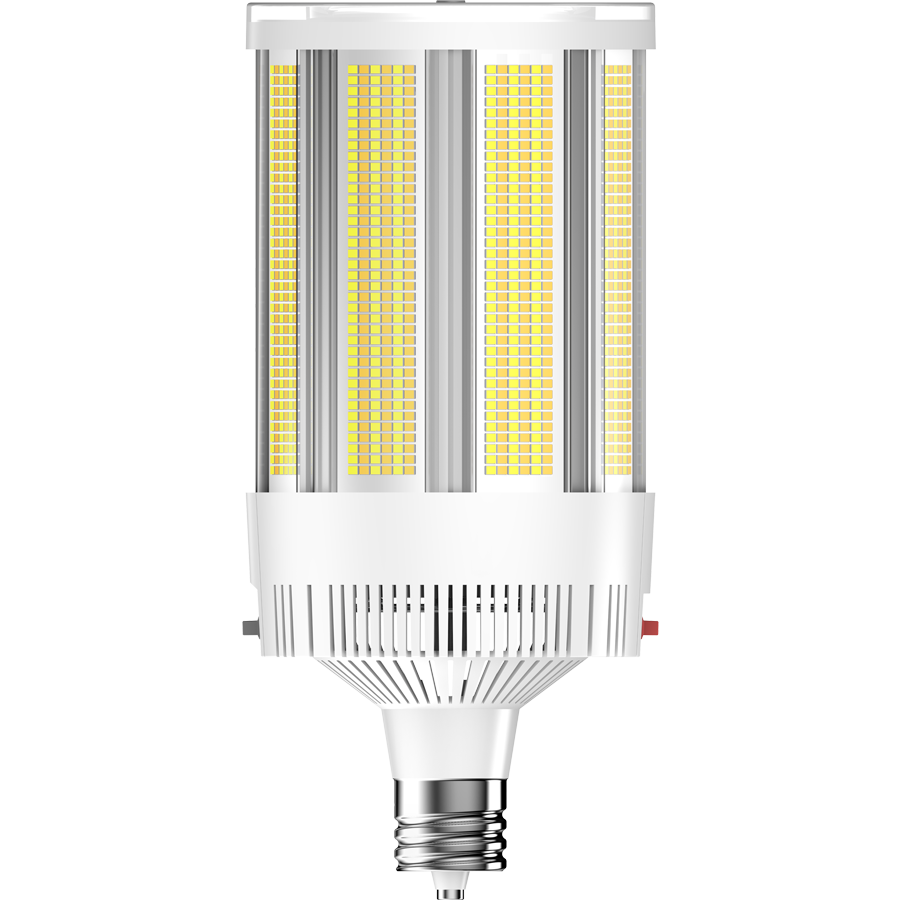

RAB HIDFA-270S-EX39-8CCT-BYP Post Top LED Retrofit Lamp – Selectable 270W/200W/135W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 23412-45330 Lumens

$225.00

RAB HIDFA-270S-EX39-8CCT-BYP Post Top LED Retrofit Lamp – Selectable 270W/200W/135W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 23412-45330 Lumens

Product: RAB HIDFA-270S-EX39-8CCT-BYP Post Top LED Retrofit Lamp – Selectable 270W/200W/135W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 23412-45330 Lumens

Name: RAB HIDFA-270S-EX39-8CCT-BYP Post Top LED Retrofit Lamp – Selectable 270W/200W/135W – Selectable 3000K/4000K/5000K – EX39 Mogul Base – 120-277V – 23412-45330 Lumens
Brand: RAB Lighting
SKU: HIDFA-270S-EX39-8CCT-BYP
Price: 225.0 USD
Availability: InStock

Description

The RAB Lighting HIDFA-270S-EX39-8CCT-BYP post top LED retrofit lamp delivers 23,412-45,330 lumens with selectable 135W, 200W, and 270W operation, selectable 3000K, 4000K, and 5000K color temperatures, an EX39 mogul base, and 120-277V input. High-output adjustable performance supports large commercial lighting retrofits.

Specifications

Vendor: RAB Lighting
MPN: HIDFA-270S-EX39-8CCT-BYP
UPC: 192552045445
Product Type: LED Bollard & Post Top Retrofit Bulb
Wattage: 135W, 200W, 270W
Wiring Type: Type B
Input Voltage: 120-277V
Power Factor: 0.9+
Surge Protection: 4 kV
Lumens: 23412-45330
CCT: 3000K, 4000K, 5000K
CRI: 80+
Lamp Shape: ED37
Lamp Base: Mogul EX39
Equivalent: 700W MH
Beam Angle: 280º
Dimming: Step Dimming
Features: Wattage Selectable, CCT Selectable, Active Cooling
Certifications: UL, FCC, RoHS
IP Rating: IP54
Location Rating: Damp
Housing: UV Resistant Polycarbonate
Lens: Polycarbonate
Lens Color: Clear
Operating Temperature: -40°F to 122°F (-40°C to 50°C)
Weight: 3.56 lbs
Dimensions: 12.25"L x 5.5625"D
Rated Hours: 50000
Warranty: 5 Years
Applications: Walkways, Pathways, Commercial Campuses, Parks, Municipal Facilities
