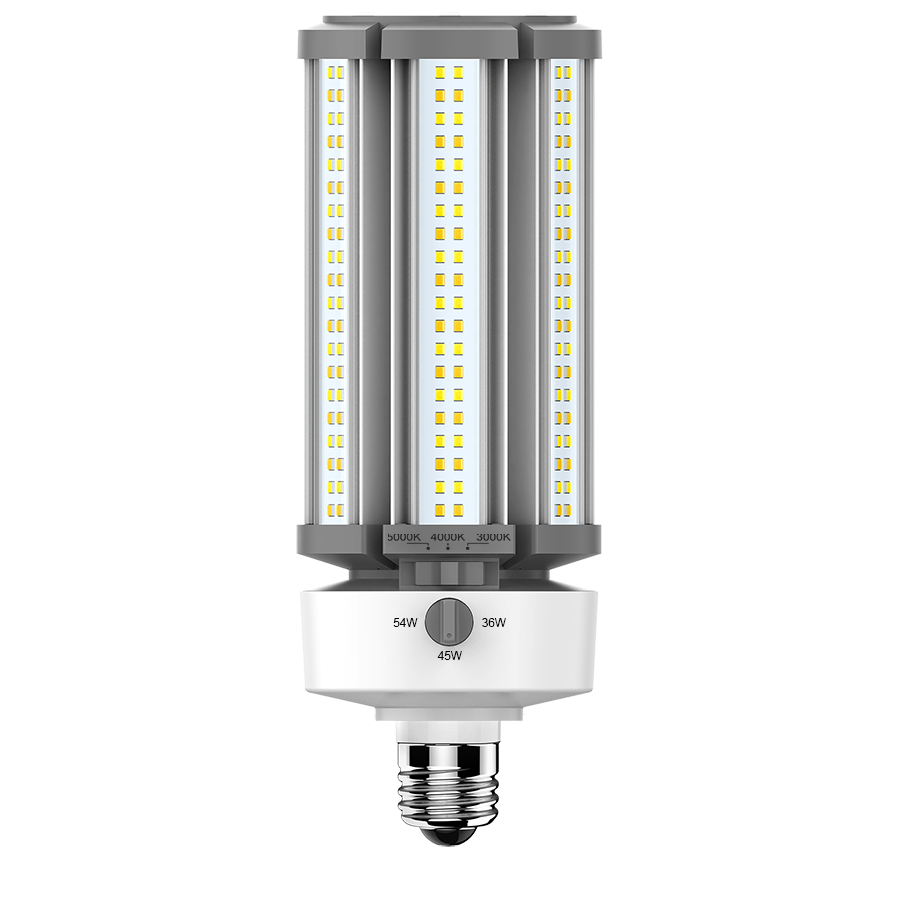

RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens

RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens

$69.00
$69.00
Skip to product information
RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
  • RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens
RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens

RAB HIDFA-54S-E26-8CCT-BYP/5SP 5-Pin Post Top LED Retrofit Lamp – Type B Bypass – Selectable 36W/45W/54W – Selectable 3000K/4000K/5000K – E26 Medium Base – 120-277V – 5220-7830 Lumens

UL Certified Wattage & CCT Adjustable IP64 Rating Damp Location Rated 80+ CRI 120-277V 50000 Rated Hours

Description

The RAB Lighting HIDFA-54S-E26-8CCT-BYP/5SP 5-pin post top LED retrofit lamp delivers 5,220-7,830 lumens with selectable 36W, 45W, and 54W operation, selectable 3000K, 4000K, and 5000K color temperatures, a medium E26 base, and 120-277V input. Adjustable performance allows one lamp to support multiple retrofit applications.

Specifications

  • Vendor: RAB Lighting
  • MPN: HIDFA-54S-E26-8CCT-BYP/5SP
  • UPC: 192552027021
  • Product Type: LED Bollard & Post Top Retrofit Bulb
  • Wattage: 36W, 45W, 54W
  • Wiring Type: Type B
  • Input Voltage: 120-277V
  • Power Factor: 0.9+
  • Surge Protection: 4 kV
  • Lumens: 5220-7830
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Lamp Base: Medium E26
  • Equivalent: 150/175/200W MH
  • Beam Angle: 360°
  • Features: Wattage Selectable, CCT Selectable
  • Certifications: UL, FCC, RoHS
  • IP Rating: IP64
  • Location Rating: Damp
  • Housing: Polycarbonate
  • Operating Temperature: -22°F to 140°F (-30°C to 60°C)
  • Weight: 1.9 lbs
  • Dimensions: 9.0625"L x 3.375"D
  • Rated Hours: 50000
  • Warranty: 5 Years
  • Applications: Walkways, Pathways, Commercial Campuses, Parks, Municipal Facilities
$69.00
$69.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
