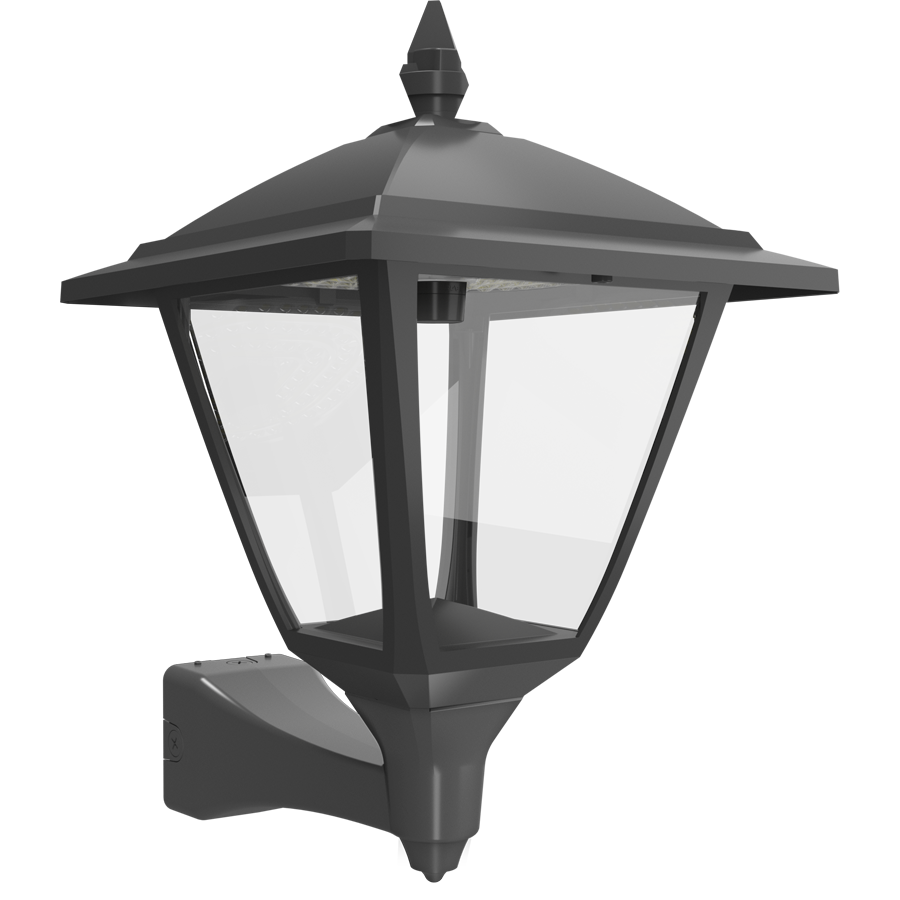

RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish

RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish

$729.00
$729.00
Skip to product information
RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
  • RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish
RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish

RAB HTG-SWM/480/LCBS/MVS Square Outdoor Wall Sconce – 60W-120W Selectable – Type III/Type V Distribution – 3000K/4000K/5000K Selectable – 5089-15401 Lumens – 480V – Lightcloud Blue – Multi-Level Motion Sensor – Bronze Finish

UL Certified Wattage & CCT Adjustable Optic Switchable Type III Type V Button Photocell IP65 Rating IK08 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 480V 100000 Rated Hours

Description

The RAB Lighting HTG-SWM/480/LCBS/MVS square outdoor wall sconce features selectable 60W-120W wattages, Type III/Type V distribution, selectable 3000K/4000K/5000K color temperatures, delivers 5089-15401 lumens, operates on 480V power, features Lightcloud Blue with a multi-level motion sensor, and has a bronze finish.

Specifications

  • Vendor: RAB Lighting
  • MPN: HTG-SWM/480/LCBS/MVS
  • Product Type: Outdoor Wall Sconce
  • Wattage: 60W, 80W, 100W, 120W
  • Input Voltage: 480V
  • Lumens: 5089-15401
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Light Distribution: Type III, Type V
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, Selectable Optics, On/Off Photocell, Lightcloud® Blue Microwave Sensor
  • Certifications: UL
  • IK Rating: IK08
  • IP Rating: IP65
  • Location Rating: Wet
  • Mounting Type: Wall
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Lens Color: Clear
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Weight: 10.3 lbs
  • Finish: Bronze

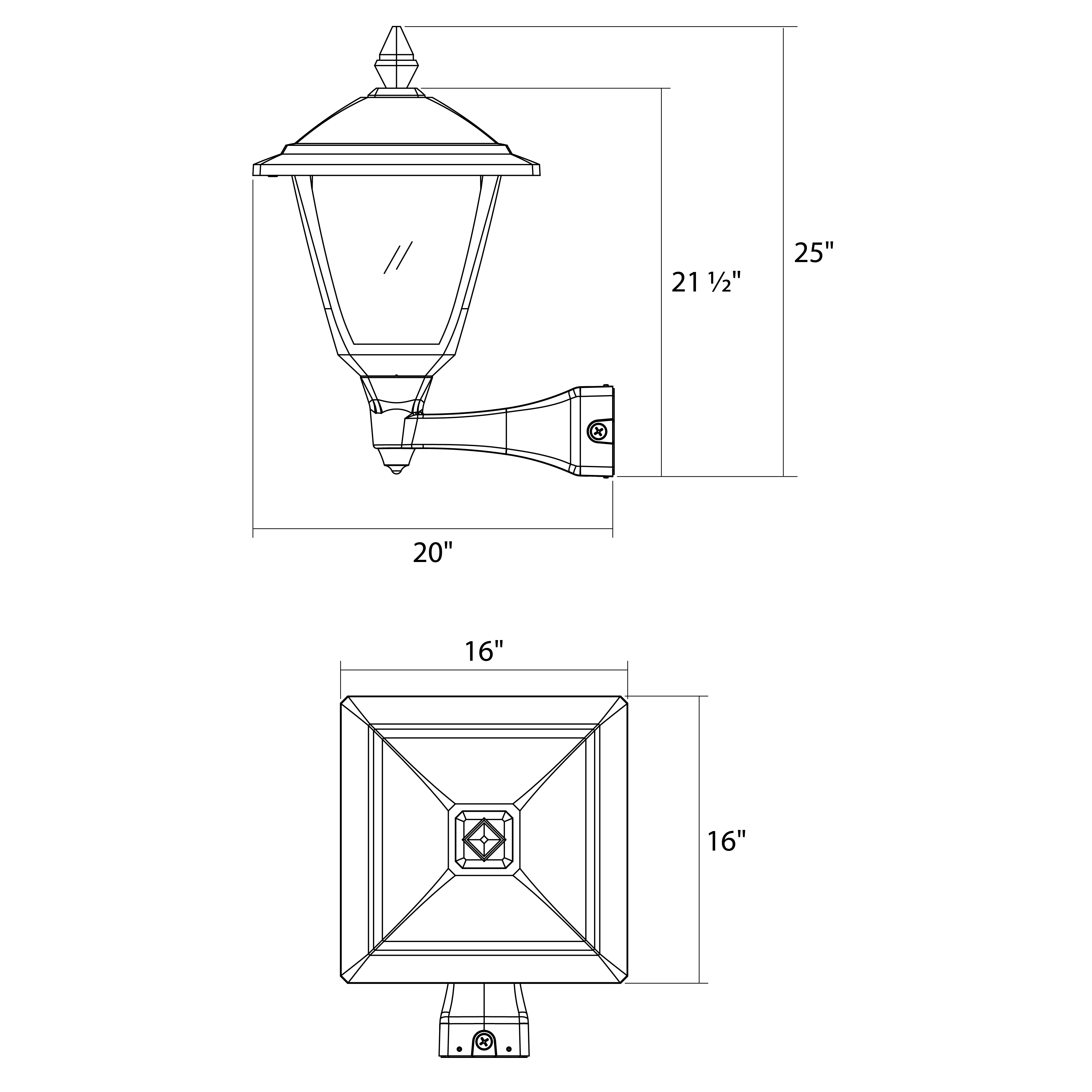

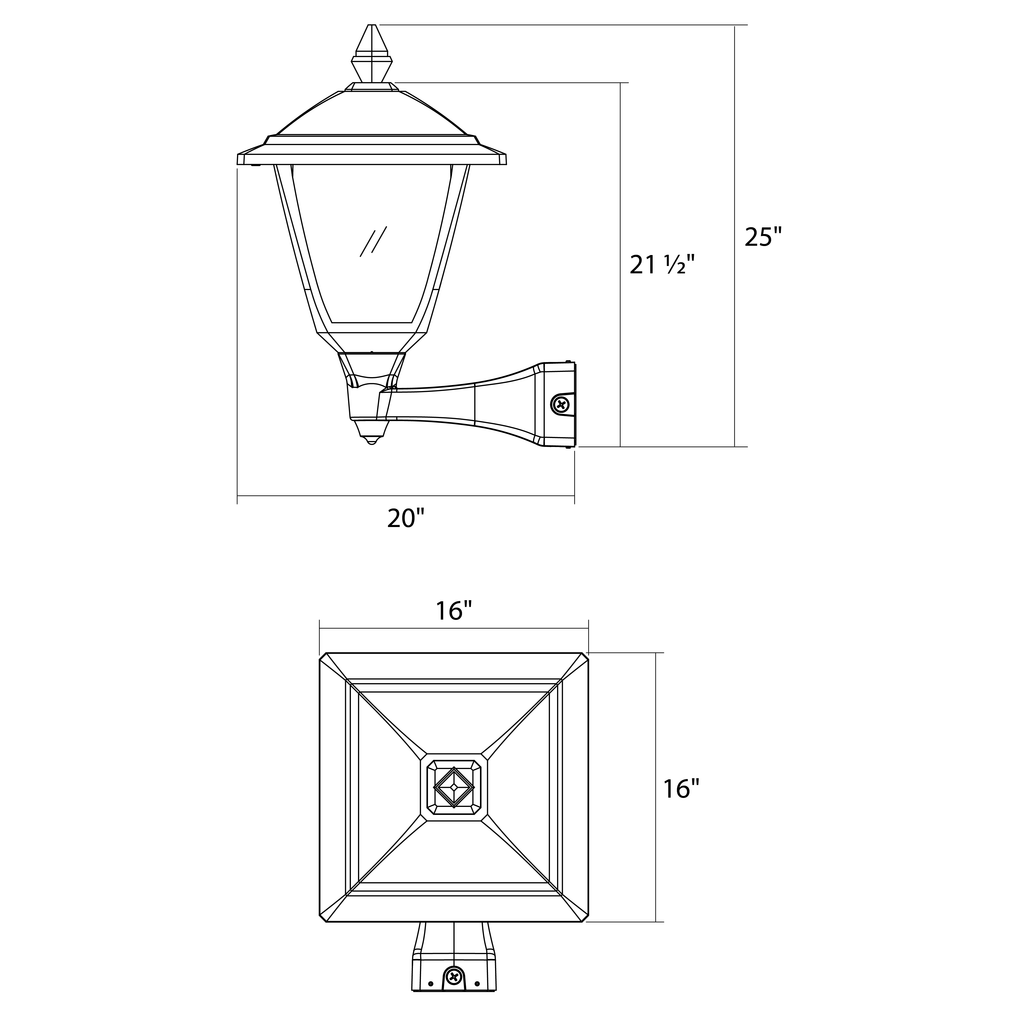

  • Dimensions: 16"L x 16"W x 25"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Building Entrances, Hotels, Restaurants, Multifamily Housing, Commercial Buildings
