RAB LF17X2W/SMS Field-Adjustable Landscape Light – Dual Head – Selectable 3W/5W/8W/10W/16W – Selectable 2700K/3000K/3500K/4000K/5000K – 358-2230 Lumens – 120V – SMS500 Mount – White Finish

$199.00

RAB LF17X2W/SMS Field-Adjustable Landscape Light – Dual Head – Selectable 3W/5W/8W/10W/16W – Selectable 2700K/3000K/3500K/4000K/5000K – 358-2230 Lumens – 120V – SMS500 Mount – White Finish

Product: RAB LF17X2W/SMS Field-Adjustable Landscape Light – Dual Head – Selectable 3W/5W/8W/10W/16W – Selectable 2700K/3000K/3500K/4000K/5000K – 358-2230 Lumens – 120V – SMS500 Mount – White Finish

Name: RAB LF17X2W/SMS Field-Adjustable Landscape Light – Dual Head – Selectable 3W/5W/8W/10W/16W – Selectable 2700K/3000K/3500K/4000K/5000K – 358-2230 Lumens – 120V – SMS500 Mount – White Finish
Brand: RAB Lighting
SKU: LF17X2W/SMS
Price: 199.0 USD
Availability: InStock

Description

The RAB Lighting LF17X2W/SMS dual head field-adjustable landscape light features selectable 3W, 5W, 8W, 10W, or 16W output with selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Delivering 358 to 2,230 lumens, it operates on 120V power and includes an SMS500 mount with a white finish.

Specifications

Vendor: RAB Lighting
MPN: LF17X2W/SMS
UPC: 192552016827
Product Type: Motion Sensor Security Flood Light
Wattage: 3W, 5W, 8W, 10W, 16W
Input Voltage: 120V
Lumens: 358-2230
CCT: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: 80+
Dimming: 0-10V
Sensor Coverage: 180° Detection Pattern
Features: Wattage Selectable, CCT Selectable, Motion Sensor
Certifications: UL
IP Rating: IP65
Location Rating: Wet
Number of Heads: 2
Housing: Die-Cast Aluminum
Lens: Polymethyl Methacrylate
Operating Temperature: -40°F to 104°F (-40°C to 40°C)
Weight: 2.65 lbs
Finish: White

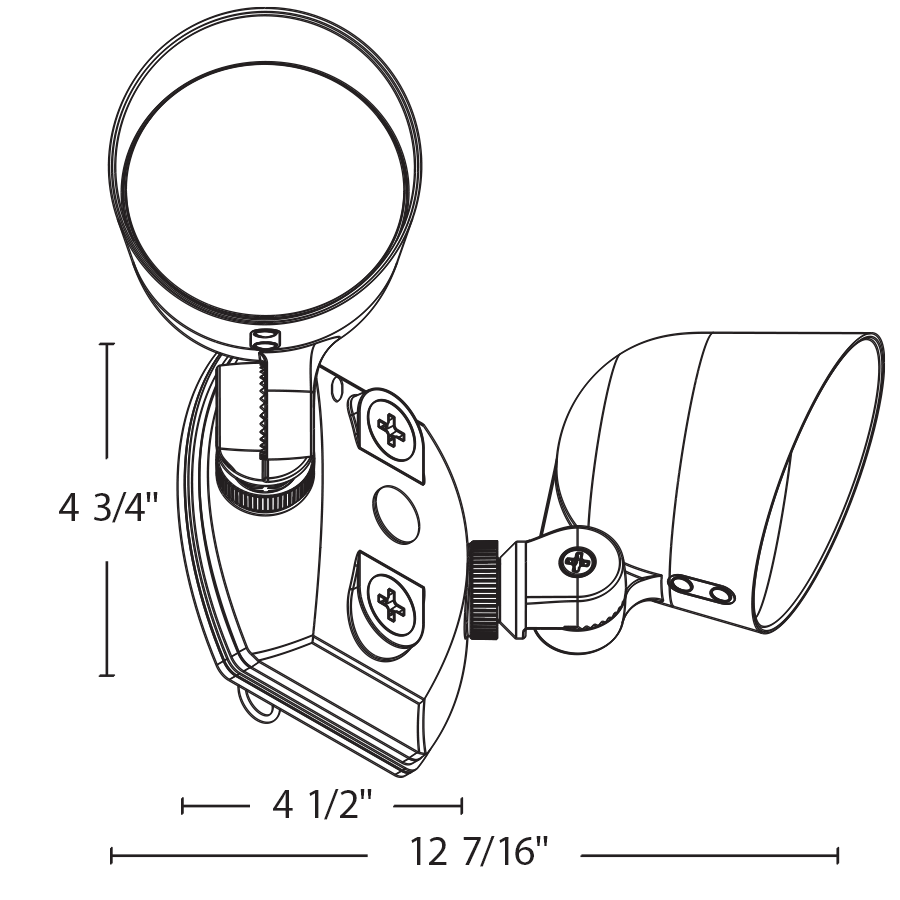

Dimensions: 12.4375"W x 5.8125"H
Rated Hours: 50000
Warranty: 5 Years
Applications: Building Perimeters, Parking Areas, Loading Docks, Commercial Entrances, Industrial Facilities

$199.00

In Stock

Free Standard Shipping: Available on all RAB Lighting products.

Lead Time: 1–3 Business Days

Payment & Security

Trusted by contractors, businesses, and facility managers since 1996.

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.

View Shipping Policy →

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.

View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ◫ IES File ⚙ Installation Instructions ↗ View Warranty Information
