RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration

RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration

$579.00
$579.00
Skip to product information
RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
  • RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration
RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration

RAB RBAY17L/480/8C LED Linear High Bay - 39501–59358 Lumens - 260W–400W Selectable Wattage - 480V - Corded Configuration

UL Certified DLC Premium Listed Wattage & CCT Adjustable 8 Foot Cord 0-10V Dimmable Damp Location Rated 80+ CRI 480V 100000 Rated Hours

Description

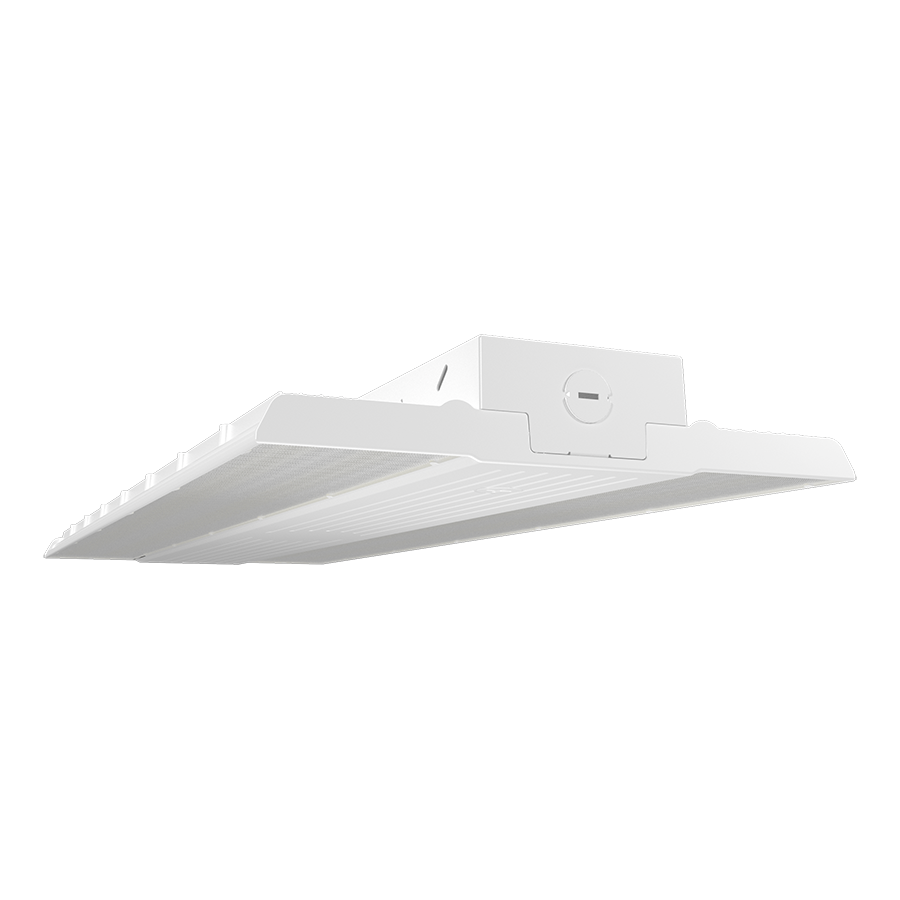

The RAB Lighting RBAY17L/480/8C LED linear high bay produces 39,501 to 59,358 lumens with selectable 260W, 320W, and 400W wattages. Designed for 480V operation with a corded configuration, it provides high-output illumination for warehouses, manufacturing facilities, and industrial spaces.

Specifications

  • Vendor: RAB Lighting
  • MPN: RBAY17L/480/8C
  • Product Type: Linear High Bay Light
  • Wattage: 260W, 320W, 400W
  • Input Voltage: 480V
  • Lumens: 39501-59358
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, 8 ft Cord
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-0JQXZI
  • Location Rating: Damp
  • Mounting Type: Suspended, Surface
  • Mounting Height: 30–40 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 140°F (-20°C to 60°C)
  • Weight: 17.9 lbs
  • Finish: White
  • Dimensions: 30.6875"L x 11"W x 2.0625"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Warehouses, Distribution Centers, Manufacturing Facilities, Retail Stores, Gymnasiums
