RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug

RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug

$330.00
$330.00
Skip to product information
RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug

RAB RBAY17M/8CP2 LED Linear High Bay - 25587-39200 Lumens - 160W–260W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug

UL Certified DLC Premium Listed Wattage & CCT Adjustable 8 Foot Cord 0-10V Dimmable Damp Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

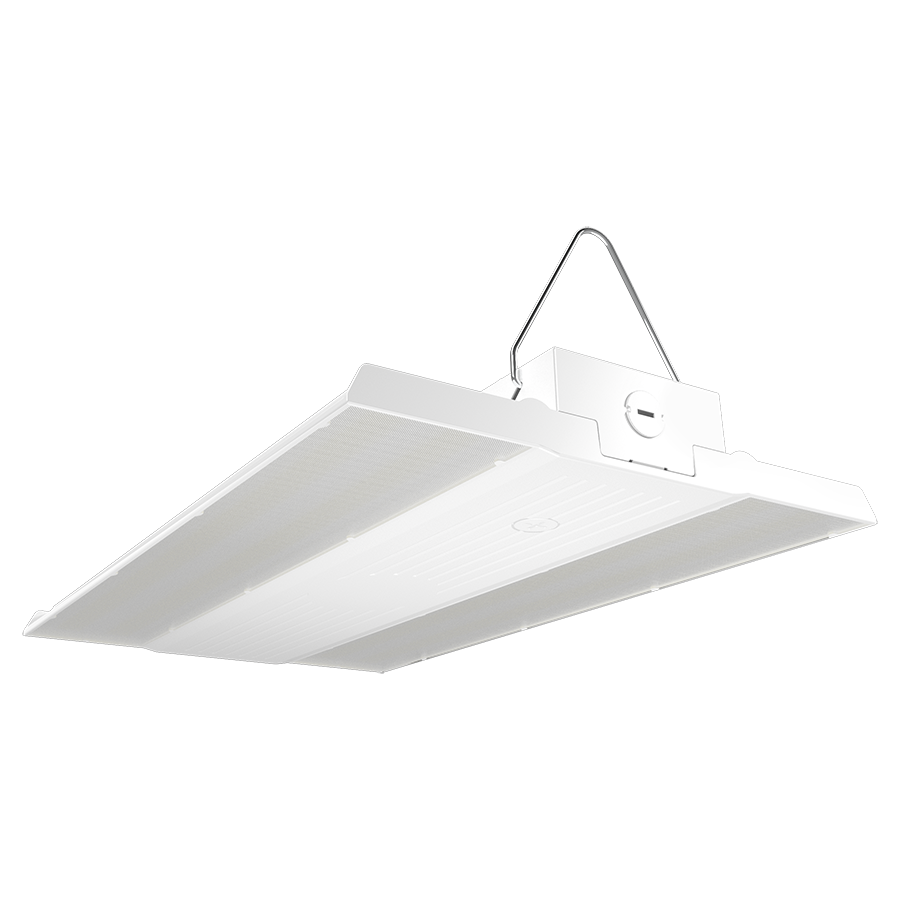

The RAB Lighting RBAY17M/8CP2 LED linear high bay delivers 25,587 to 39,200 lumens with selectable 160W, 200W, and 260W performance. It includes an 8-foot cord with a NEMA 7-15 plug and operates on 120-277V power for commercial high-bay installations.

Specifications

  • Vendor: RAB Lighting
  • MPN: RBAY17M/8CP2
  • Product Type: Linear High Bay Light
  • Wattage: 160W, 220W, 260W
  • Input Voltage: 120-277V
  • Lumens: 25587-39200
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, 8 ft Cord with 277V NEMA 7-15P Straight Blade Plug
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-Z1IKA0
  • Location Rating: Damp
  • Mounting Type: Suspended, Surface
  • Mounting Height: 25–30 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 140°F (-20°C to 60°C)
  • Weight: 6.53 lbs
  • Finish: White
  • Dimensions: 19.6875"L x 11.8125"W x 2.0625"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Warehouses, Distribution Centers, Manufacturing Facilities, Retail Stores, Gymnasiums
$330.00
$330.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ▦ Spacing Tables ⚙ Installation Instructions ↗ View Warranty Information
