RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug

RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug

$353.00
$353.00
Skip to product information
RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
  • RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug
RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug

RAB RBAY17S/E/8CP2 LED Linear High Bay with Emergency Battery Backup - 12758-20350 Lumens - 80W–130W Selectable Wattage - 120-277V - 8' Cord with NEMA 7-15 Plug

UL Certified DLC Premium Listed Wattage & CCT Adjustable Battery Backup 8 Foot Cord 0-10V Dimmable Damp Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

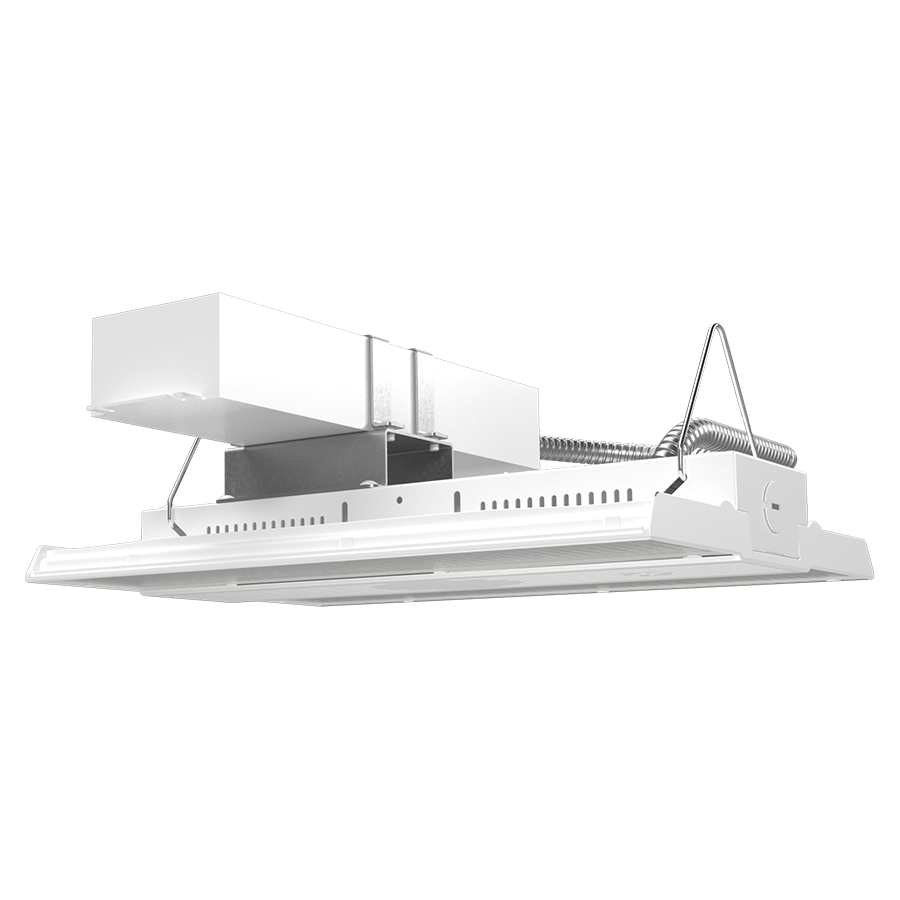

The RAB Lighting RBAY17S/E/8CP2 LED linear high bay delivers 12,758 to 20,350 lumens with selectable 80W, 100W, and 130W wattages. An integrated emergency battery backup and an 8-foot cord with a NEMA 7-15 plug provide emergency illumination and straightforward installation for commercial facilities.

Specifications

  • Vendor: RAB Lighting
  • MPN: RBAY17S/E/8CP2
  • Product Type: Linear High Bay Light
  • Wattage: 80W, 100W, 130W
  • Input Voltage: 120-277V
  • Lumens: 12758-20350
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Emergency Operation: 90 Minutes
  • Features: Wattage Selectable, CCT Selectable, Battery Backup, 8 ft Cord with 277V NEMA 7-15P Straight Blade Plug
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-ZU7Y5J
  • Location Rating: Damp
  • Mounting Type: Suspended, Surface
  • Mounting Height: 20–25 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 140°F (-20°C to 60°C)
  • Weight: 3.95 lbs
  • Finish: White
  • Dimensions: 13"L x 9.8125"W x 1.8125"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Warehouses, Distribution Centers, Manufacturing Facilities, Retail Stores, Gymnasiums
