RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White

RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White

$485.00
$485.00
Skip to product information
RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
  • RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White
RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White

RAB RBAY22L NSF LED Linear High Bay - 31240-48221 Lumens - 200W–320W Selectable Wattage - 120-277V - White

UL Certified DLC Premium Listed NSF Certified Wattage & CCT Adjustable Switchable Optics IP69K Rating IK08 Rating 0-10V Dimmable Damp Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

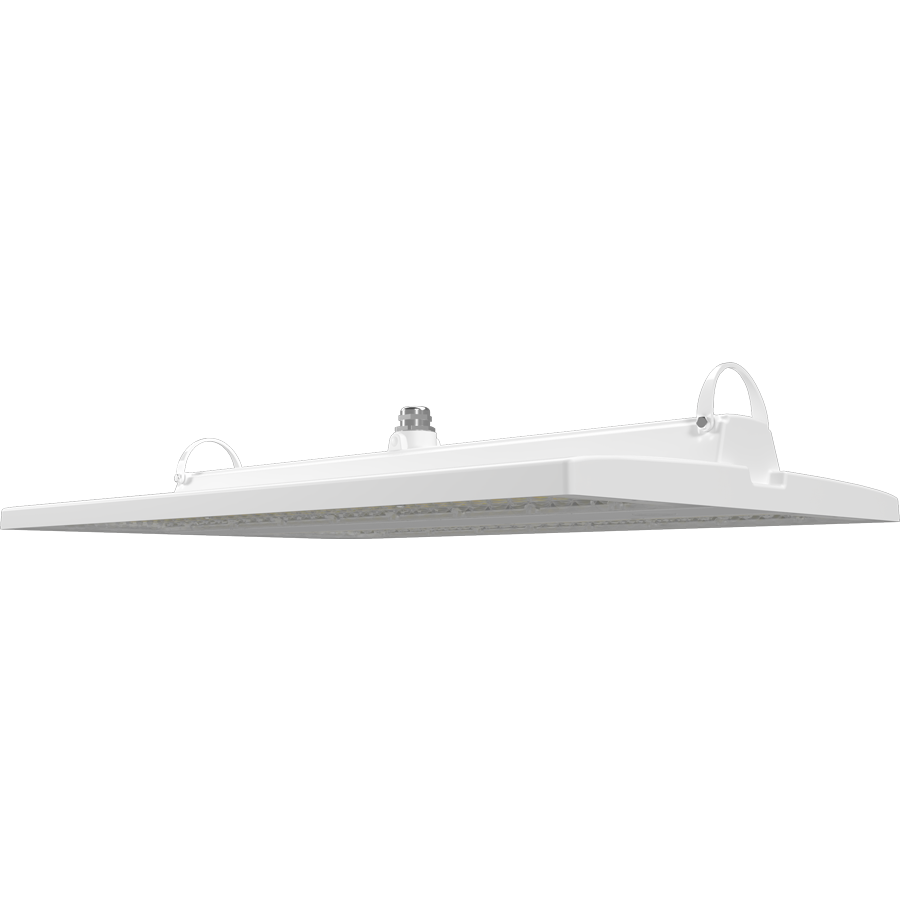

The RAB Lighting RBAY22L NSF LED linear high bay produces 31,240 to 48,221 lumens with selectable 200W, 260W, and 320W wattages. Operating on 120-277V power, the NSF-rated design is intended for food processing facilities and other commercial environments.

Specifications

  • Vendor: RAB Lighting
  • MPN: RBAY22L
  • UPC: 192552044561
  • Product Type: Linear High Bay Light
  • Wattage: 200W, 260W, 320W
  • Input Voltage: 120-277V
  • Lumens: 31240-48221
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, Adjustable Optics
  • Certifications: UL, NSF
  • DLC Rating: DLC Premium
  • DLC Product ID: S-T8L2Y1
  • IK Rating: IK08
  • IP Rating: IP69K
  • Location Rating: Damp
  • Mounting Type: Suspended, Surface
  • Mounting Height: 30–40 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 140°F (-20°C to 60°C)
  • Weight: 13.62 lbs
  • Finish: White

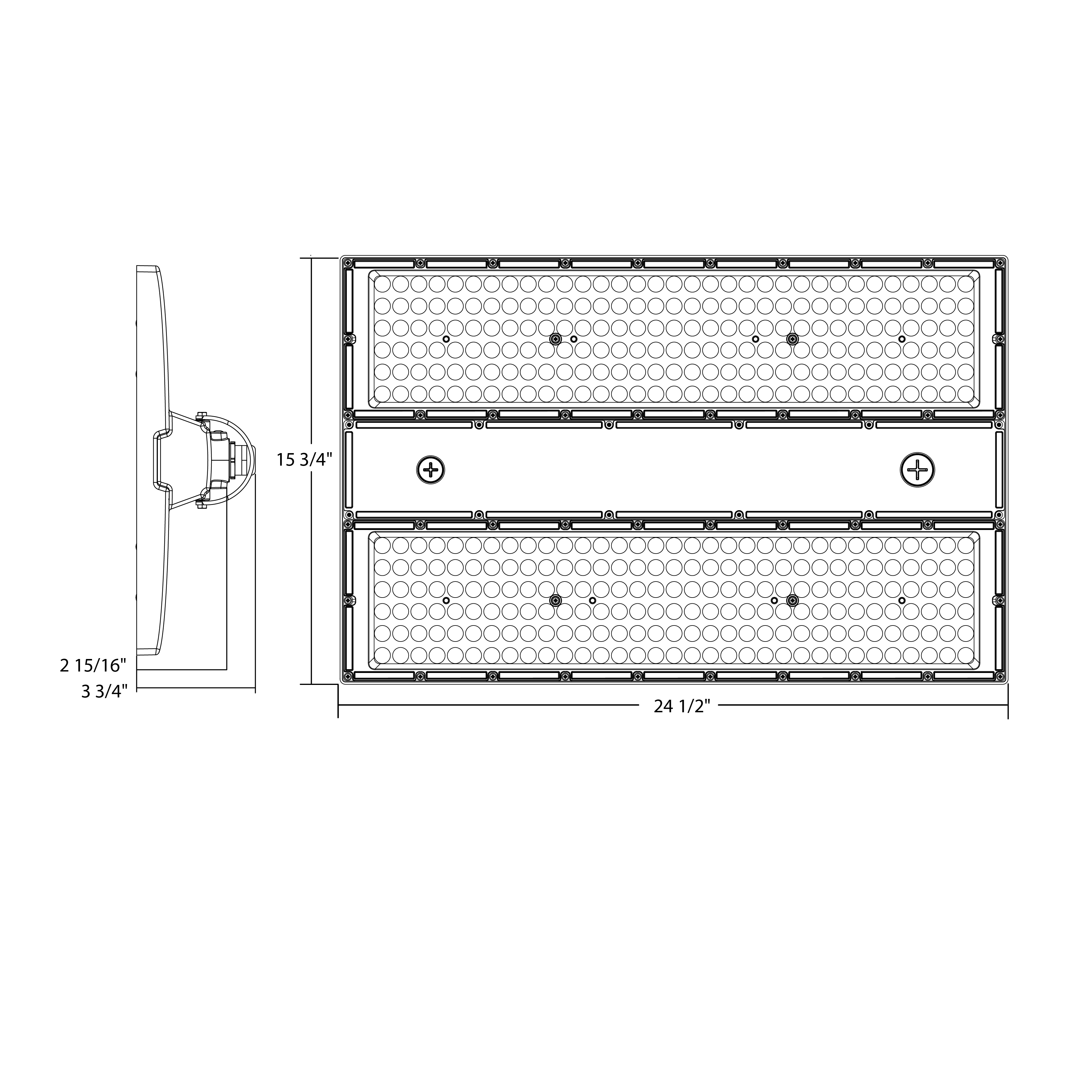

  • Dimensions: 24.5"L x 15.75"W x 3.75"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Food Processing Facilities, Commercial Kitchens, Cold Storage Facilities, Beverage Processing Plants, Pharmaceutical Manufacturing Facilities
$485.00
$485.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
