RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White

RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White

$585.00
$585.00
Skip to product information
RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
  • RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White
RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White

RAB RBAY22L/480 NSF LED Linear High Bay - 31543-48594 Lumens - 200W–320W Selectable Wattage - 480V - White

UL Certified DLC Premium Listed NSF Certified Wattage & CCT Adjustable Switchable Optics IP69K Rating IK08 Rating 0-10V Dimmable Damp Location Rated 80+ CRI 480V 100000 Rated Hours

Description

The RAB Lighting RBAY22L/480 NSF LED linear high bay produces 31,543 to 48,594 lumens with selectable 200W, 260W, and 320W wattages. Designed for 480V operation, the NSF-rated fixture is suitable for food processing and industrial environments.

Specifications

  • Vendor: RAB Lighting
  • MPN: RBAY22L/480
  • UPC: 192552044592
  • Product Type: Linear High Bay Light
  • Wattage: 200W, 260W, 320W
  • Input Voltage: 480V
  • Lumens: 31543-48594
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, Adjustable Optics
  • Certifications: UL, NSF
  • DLC Rating: DLC Premium
  • DLC Product ID: S-VBRWPZ
  • IK Rating: IK08
  • IP Rating: IP69K
  • Location Rating: Damp
  • Mounting Type: Suspended, Surface
  • Mounting Height: 30–40 ft
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 140°F (-20°C to 60°C)
  • Weight: 14.95 lbs
  • Finish: White

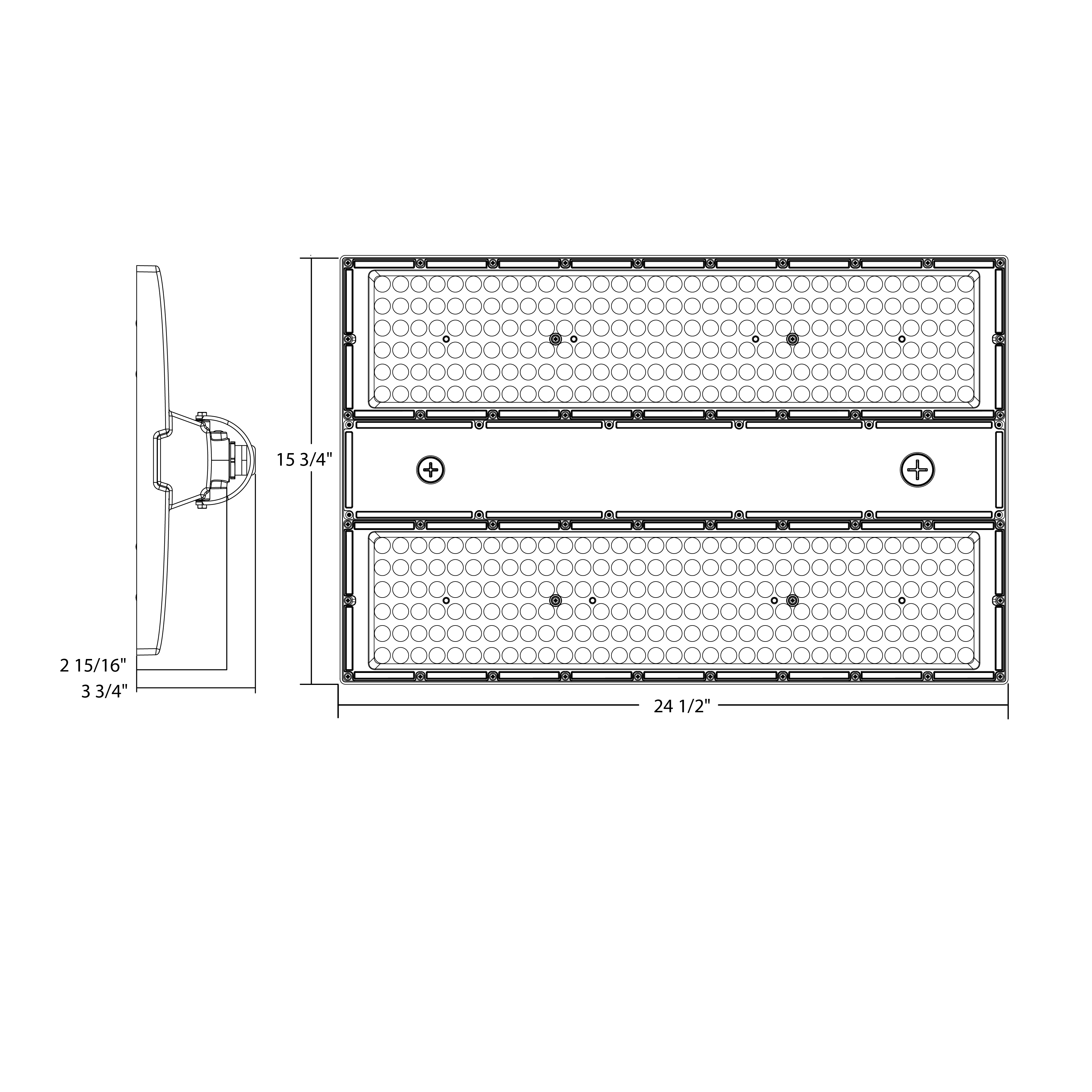

  • Dimensions: 24.5"L x 15.75"W x 3.75"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Food Processing Facilities, Commercial Kitchens, Cold Storage Facilities, Beverage Processing Plants, Pharmaceutical Manufacturing Facilities
$585.00
$585.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
