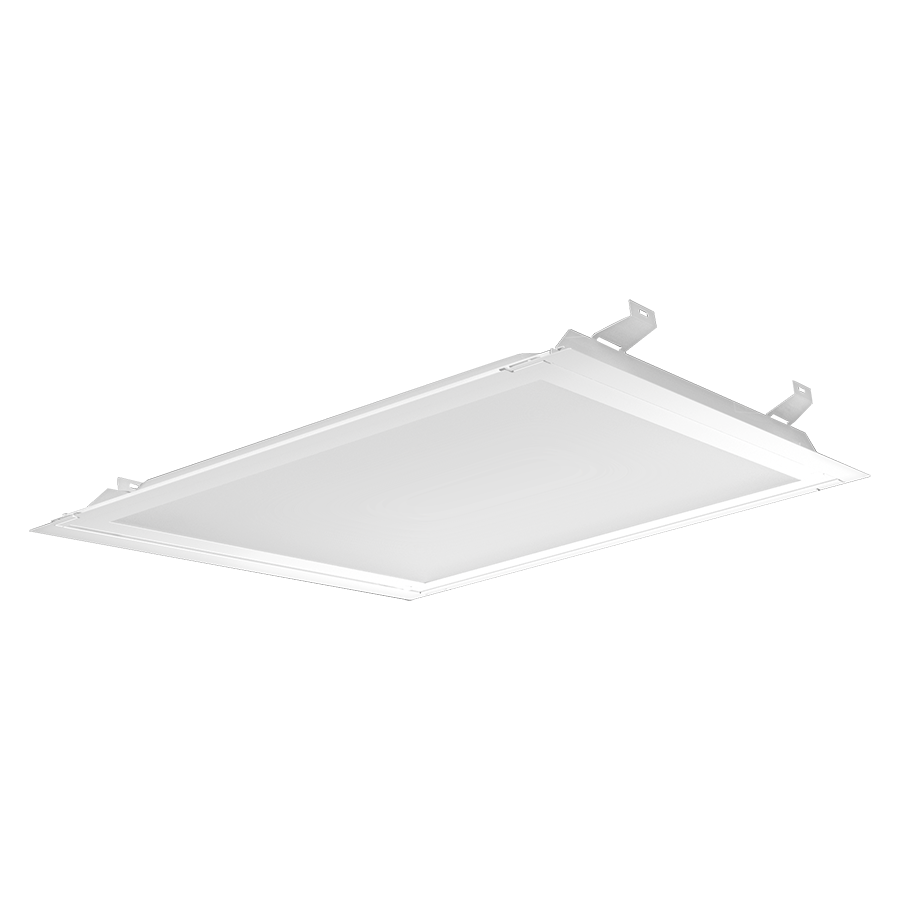

RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish

RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish

$132.00
$132.00
Skip to product information
RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
  • RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish
RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish

RAB RPLED2X2/MVS Retrofit Flat Panel – 2x2 – Selectable 18W/25W/30W – 3500K/4000K/5000K – 2505-3862 Lumens – 120-277V – Microwave Occupancy Sensor – White Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable 0-10V Dimmable Damp Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

The RAB Lighting RPLED2X2/MVS 2x2 retrofit flat panel delivers 2,505 to 3,862 lumens with selectable 18W, 25W, and 30W output. A microwave occupancy sensor automatically controls the fixture based on occupancy, while selectable color temperatures provide flexibility for commercial retrofit installations.

Specifications

  • Vendor: RAB Lighting
  • MPN: RPLED2X2/MVS
  • UPC: 192552037921
  • Product Type: Panel Light Retrofit Kit
  • Size: 2x2
  • Wattage: 25W, 30W, 35W
  • Input Voltage: 120-277V
  • Lumens: 2505-3862
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, Microwave Sensor
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-D67WRC
  • Location Rating: Damp
  • Mounting Type: Recessed
  • Housing: Galvanized Sheet Housing, Aluminum Frame
  • Lens: Polystyrene (PS)
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Weight: 3.48 lbs
  • Finish: White
  • Dimensions: 21.0625"L x 21.3125"W x 2.9375"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Offices, Schools, Healthcare Facilities, Commercial Buildings, Retail Spaces
$132.00
$132.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ◈ LM79 Report ◫ IES File ⚙ Installation Instructions ↗ View Warranty Information
Panel Light Retrofit Kits Most Specific Category Panel Light Retrofit KitsPanel light retrofit kits upgrade existing fluorescent panel fixtures with energy-efficient LED technology while utilizing compatible housings. Explore retrofit solutions designed to improve light quality, reduce maintenance, and lower long-term operating costs.Explore Collection Panel Lights Product Category Panel LightsPanel lights deliver bright, uniform illumination for offices, schools, healthcare facilities, conference rooms, and other suspended ceiling applications. Explore energy-efficient LED panel lights available in 1x4, 2x2, and 2x4 configurations for new construction and retrofit projects.Explore Collection Commercial Indoor Lighting Lighting Department Commercial Indoor LightingCommercial indoor lighting includes LED fixtures designed for offices, warehouses, schools, healthcare facilities, retail spaces, manufacturing plants, hospitality venues, and other indoor environments. Discover lighting solutions built for performance and efficiency.Explore Collection RAB Lighting Shop by Brand RAB LightingRAB Lighting manufactures innovative LED fixtures, lamps, lighting controls, sensors, and emergency lighting trusted by contractors, facility managers, and electrical professionals. Explore high-quality lighting solutions engineered for performance, reliability, and long-term value.View Brand Collection
