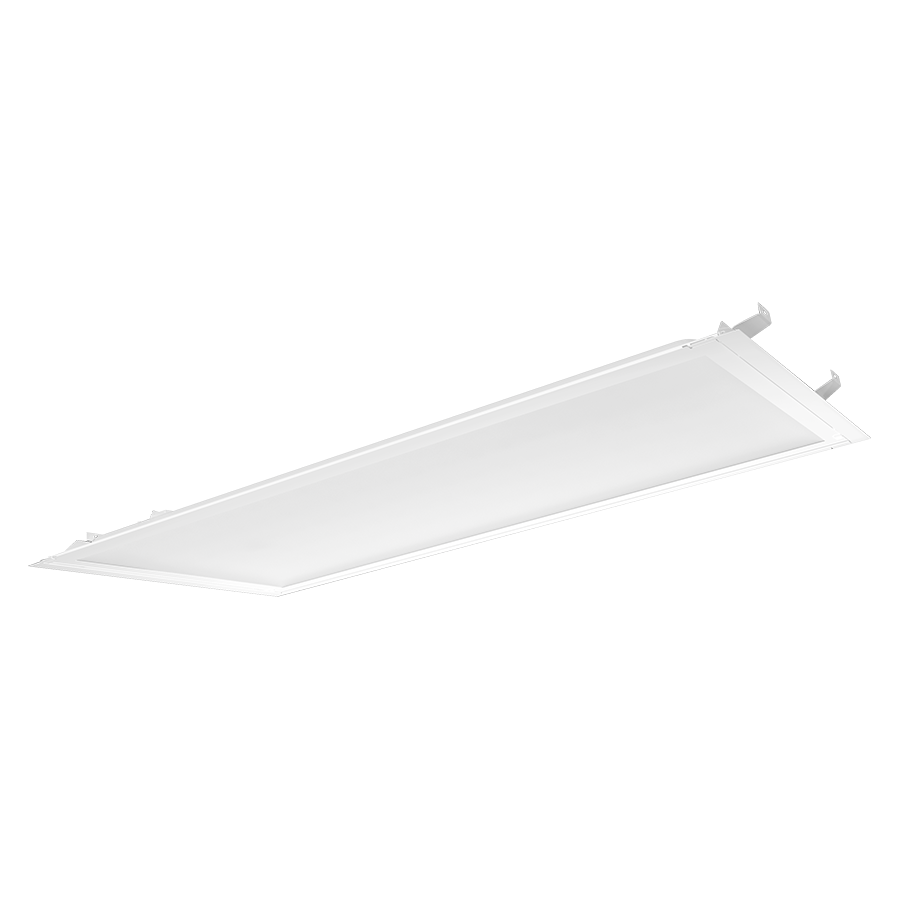

RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish

RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish

$117.00
$117.00
Skip to product information
RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
  • RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish
RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish

RAB RPLED2X4 LED Retrofit Panel – 2x4 – Selectable 25W/30W/35W – 3500K/4000K/5000K – 3543-4749 Lumens – 120-277V – White Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable 0-10V Dimmable Damp Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

The RAB Lighting RPLED2X4 2x4 LED retrofit panel features selectable 25W, 30W, and 35W wattages with selectable 3500K, 4000K, and 5000K color temperatures. Delivering 3,543 to 4,749 lumens, it operates on 120-277V power for commercial retrofit lighting applications.

Specifications

  • Vendor: RAB Lighting
  • MPN: RPLED2X4
  • UPC: 192552037945
  • Product Type: Panel Light Retrofit Kit
  • Size: 2x4
  • Wattage: 25W, 30W, 35W
  • Input Voltage: 120-277V
  • Lumens: 3543-4749
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-CSN5NZ
  • Location Rating: Damp
  • Mounting Type: Recessed
  • Housing: Galvanized Sheet Housing, Aluminum Frame
  • Lens: Polystyrene (PS)
  • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
  • Weight: 6.4 lbs
  • Finish: White
  • Dimensions: 45.3125"L x 22.0625"W x 2.9375"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Offices, Schools, Healthcare Facilities, Commercial Buildings, Retail Spaces
$117.00
$117.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ◈ LM79 Report ◫ IES File ⚙ Installation Instructions ↗ View Warranty Information
