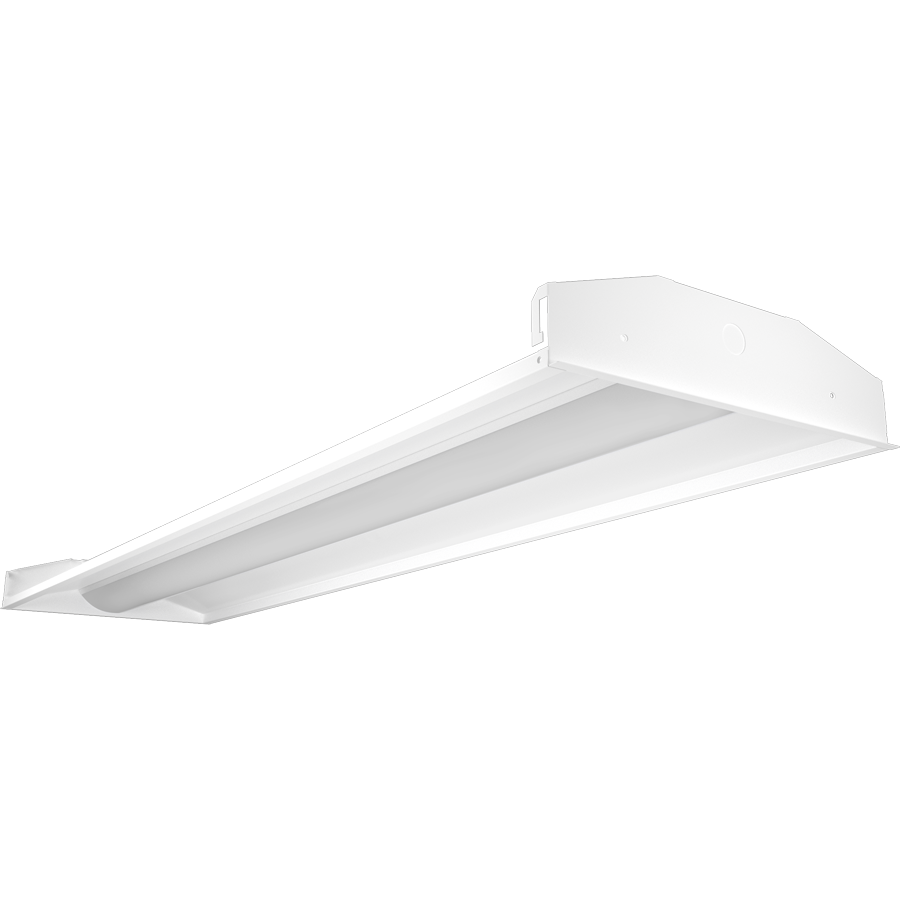

RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable

RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable

$113.00
$113.00
Skip to product information
RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
  • RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable
RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable

RAB SWISHFA1X4/D10 LED Troffer – 1x4 – Selectable 19W/29W/39W – 3500K/4000K/5000K – 2916-5668 Lumens – 120-277V – 0-10V Dimmable

UL Certified City of Chicago Compliant Wattage & CCT Adjustable IC Rated 0-10V Dimmable Damp Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

The RAB Lighting SWISHFA1X4/D10 1x4 LED troffer features selectable 19W, 29W, and 39W wattages with selectable 3500K, 4000K, and 5000K color temperatures. It delivers 2,916 to 5,668 lumens and operates on 120-277V power with 0-10V dimming.

Specifications

  • Vendor: RAB Lighting
  • MPN: SWISHFA1X4/D10
  • UPC: 192552054270
  • Product Type: Center Basket Troffer Light
  • Size: 1x4
  • Wattage: 19W, 29W, 39W
  • Input Voltage: 120-277V
  • Lumens: 2916-5668
  • CCT: 3500K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable
  • Certifications: UL, CCEA
  • IC Rating: Yes
  • Location Rating: Damp
  • Mounting Type: Recessed
  • Housing: Sheet Metal
  • Lens: Polystyrene
  • Lens Color: Frosted
  • Operating Temperature: -4°F to 104°F (-20°C to 40°C)
  • Weight: 10.2 lbs
  • Finish: White
  • Dimensions: 47.75"L x 11.9375"W x 3"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Offices, Schools, Healthcare Facilities, Conference Rooms, Commercial Buildings
$113.00
$113.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ◈ LM79 Report ◫ IES File ⚙ Installation Instructions ↗ View Warranty Information
