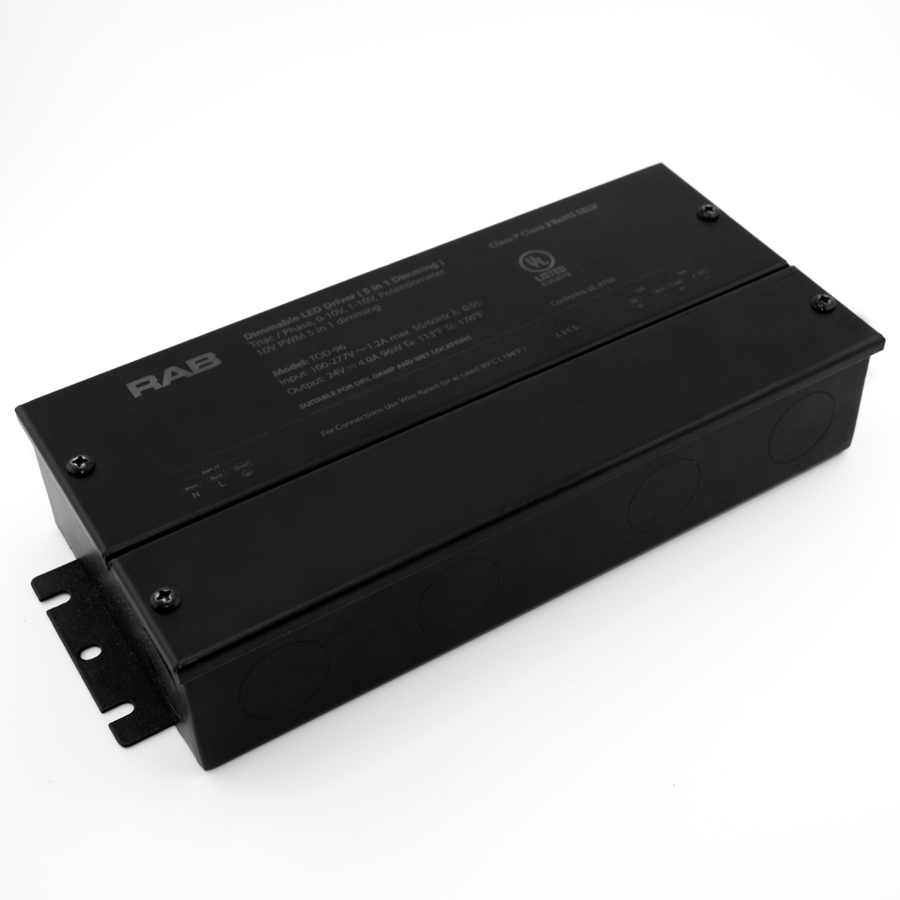

RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated

RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated

$164.30
$164.30
Skip to product information
RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated
  • RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated
  • RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated
  • RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated
  • RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated
RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated

RAB TOD-96 LED Driver – 96W – 100-277V – TRIAC / 1-10V / 0-10V / PWM / RX Dimmable – IP65 Rated

UL Certified California Title 24 Compliant IP65 Rating 0-10V + TRIAC + ELV Dimmable Wet Location Rated 100-277V 50000 Rated Hours

Description

The RAB Lighting TOD-96 96W LED driver operates on 100-277V input power and supports TRIAC, 1-10V, 0-10V, PWM, and RX dimming protocols. An IP65-rated enclosure provides dependable performance for indoor and outdoor lighting applications.

Specifications

  • Vendor: RAB Lighting
  • MPN: TOD-96
  • UPC: 192552046749
  • Product Type: LED Driver
  • Wattage: 96W
  • Input Voltage: 100-277V
  • Output Voltage: 24VDC
  • Power Factor: 0.95
  • Dimming: TRIAC/ELV/0-10V
  • Certifications: UL, Title 24, FCC, RoHS
  • IP Rating: IP65
  • Location Rating: Wet
  • Operating Temperature: -4°F to 113°F (-20°C to 45°C)
  • Weight: 2.6 lbs
  • Finish: Black

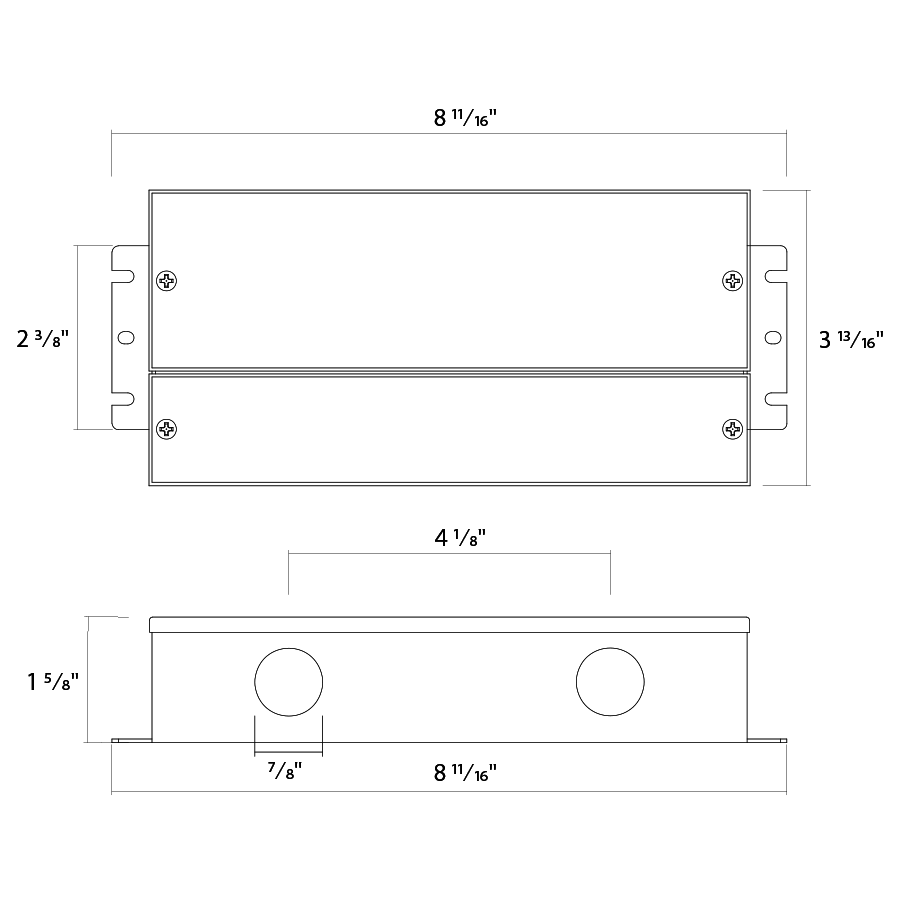

  • Dimensions: 8.6875"L x 3.8125"W x 1.625"H
  • Rated Hours: 50000
  • Warranty: 5 Years
$164.30
$164.30
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
