RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish

RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish

$254.00
$254.00
Skip to product information
RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
  • RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish
RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish

RAB W22-M-100W/480 Field-Adjustable Wall Pack – Medium – Selectable 50W/70W/85W/100W – Selectable 3000K/4000K/5000K – 6170-14087 Lumens – 480V – Adjustable Optics – White Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable Adjustable Throw Button Photocell IP65 Rating 0-10V Dimmable 6kV Surge Protection Wet Location Rated 80+ CRI 480V 100000 Rated Hours

Description

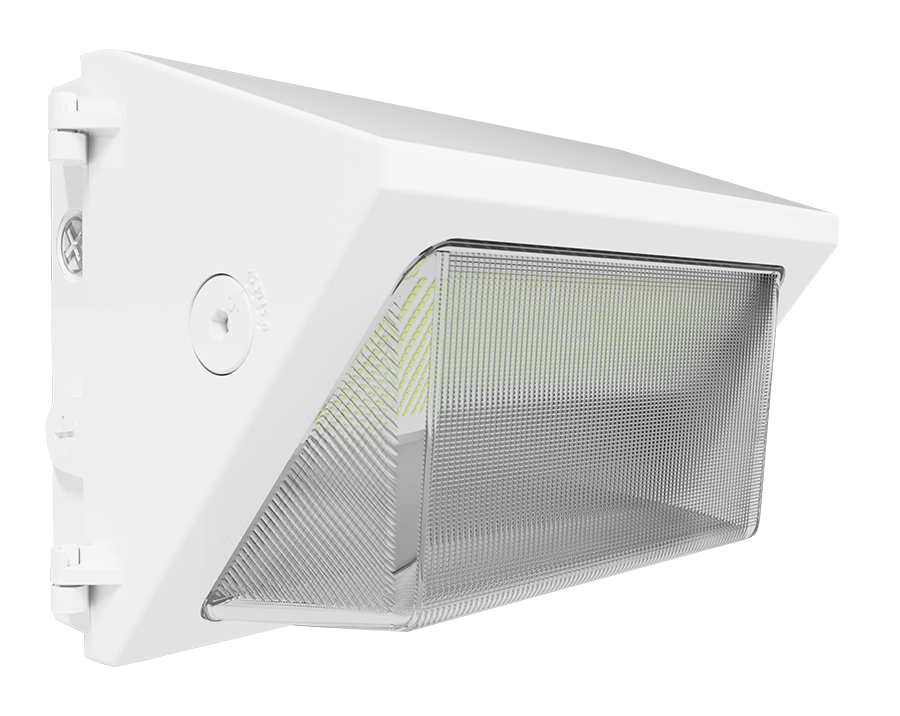

The RAB Lighting W22-M-100W/480 field-adjustable wall pack features a medium housing, selectable 50W/70W/85W/100W wattages, selectable 3000K/4000K/5000K color temperatures, and delivers 6170-14087 lumens. It operates on 480V power, includes adjustable optics, and has a white finish.

Specifications

  • Vendor: RAB Lighting
  • MPN: W22-M-100W/480
  • UPC: 192552034746
  • Product Type: Wall Pack Light
  • Wattage: 50W, 70W, 85W, 100W
  • Input Voltage: 480V
  • Lumens: 6170-14087
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, Adustable Throw, Selectable Photocell
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-B545D5
  • IP Rating: IP65
  • Location Rating: Wet
  • Housing: Die-Cast Aluminum
  • Lens: Glass
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Weight: 9.5 lbs
  • Finish: White

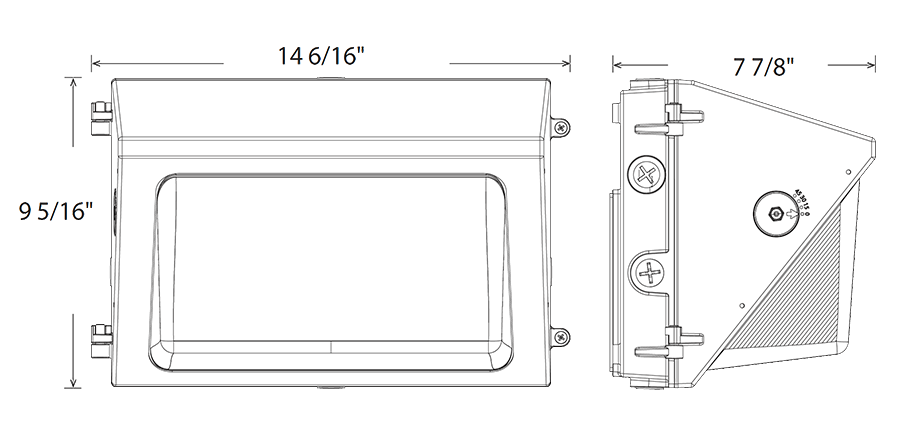

  • Dimensions: 9.3125"H x 14.375"W x 7.875"D
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Building Perimeters, Loading Docks, Commercial Entrances, Parking Garages, Industrial Facilities
$254.00
$254.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

↓ Specification Sheet ⚙ Installation Instructions ↗ View Warranty Information
