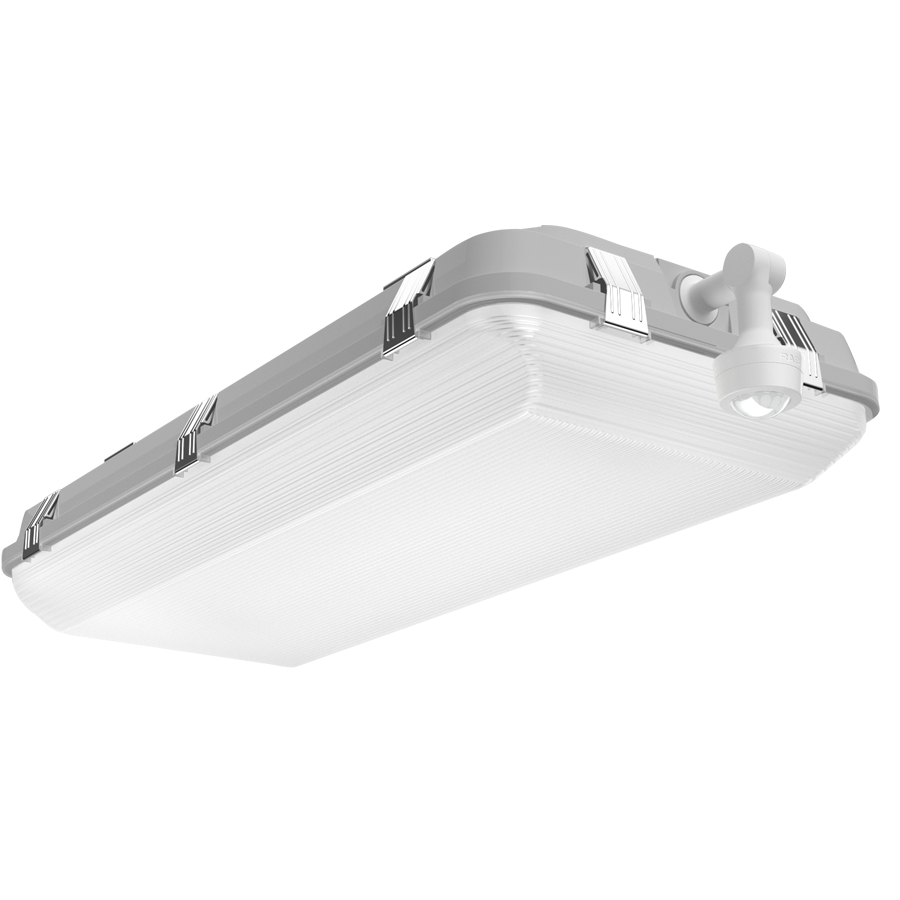

RAB WHALE2H/PIR/E LED Washdown High Bay with PIR Sensor and Emergency Battery Backup - 2ft - 10310-19460 Lumens - 70W–135W Selectable Wattage - 120-277V

$449.00

RAB WHALE2H/PIR/E LED Washdown High Bay with PIR Sensor and Emergency Battery Backup - 2ft - 10310-19460 Lumens - 70W–135W Selectable Wattage - 120-277V

Product: RAB WHALE2H/PIR/E LED Washdown High Bay with PIR Sensor and Emergency Battery Backup - 2ft - 10310-19460 Lumens - 70W–135W Selectable Wattage - 120-277V

Name: RAB WHALE2H/PIR/E LED Washdown High Bay with PIR Sensor and Emergency Battery Backup - 2ft - 10310-19460 Lumens - 70W–135W Selectable Wattage - 120-277V
Brand: RAB Lighting
SKU: WHALE2H/PIR/E
Price: 449.0 USD
Availability: InStock

Description

The RAB Lighting WHALE2H/PIR/E 2-foot LED Washdown High Bay combines selectable 70W to 135W output with an integrated PIR sensor and emergency battery backup. Producing 10,310 to 19,460 lumens, it provides occupancy-based lighting control during normal operation while maintaining illumination during power outages.

Specifications

Vendor: RAB Lighting
MPN: WHALE2H/PIR/E
Product Type: Washdown High Bay Light
Size: 2ft
Wattage: 70W, 100W, 135W
Input Voltage: 120-277V
Lumens: 10310-19460
CCT: 3500K, 4000K, 5000K
CRI: 80+
Dimming: 0-10V
Features: Wattage Selectable, CCT Selectable, Passive Infared Sensor, Battery Backup
Certifications: UL, NSF
DLC Rating: DLC Premium
DLC Product ID: S-DC3JVX
IP Rating: IP67
Location Rating: Wet
Mounting Type: Surface, Suspended
Mounting Height: 20–25 ft
Housing: Polycarbonate
Lens: Polycarbonate
Operating Temperature: -40°F to 140°F (-20°C to 60°C)
Weight: 11.6 lbs
Finish: Gray

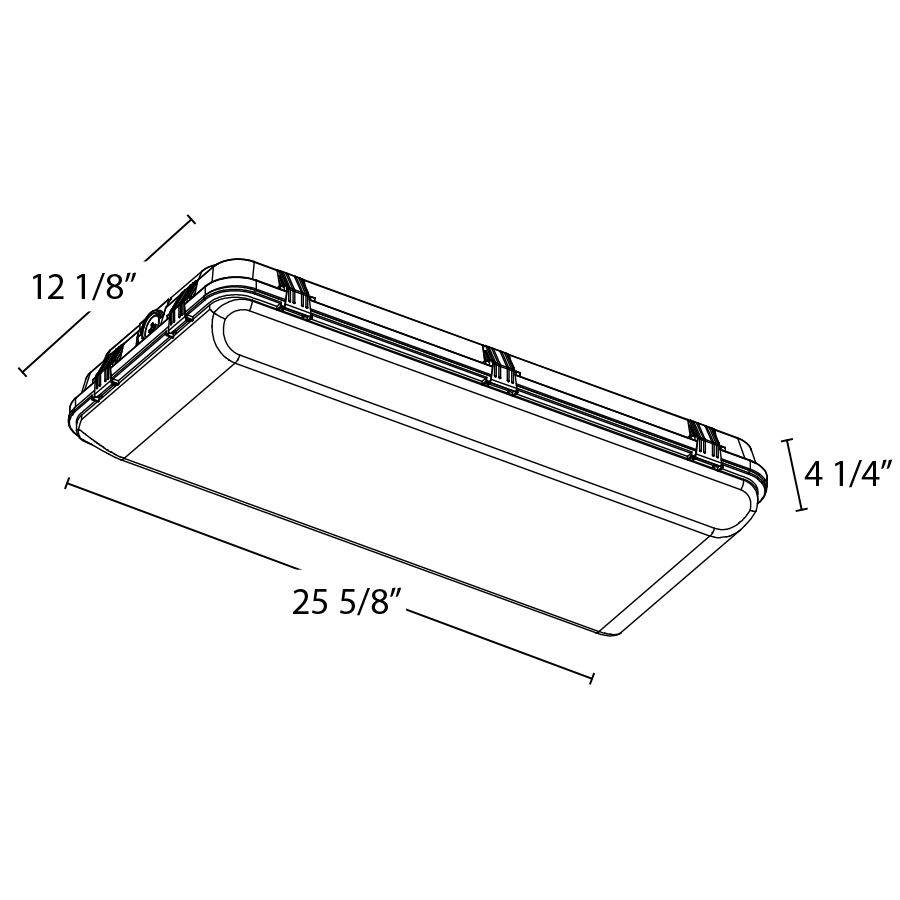

Dimensions: 25.625"L x 12.125"W x 4.25"H
Rated Hours: 100000
Warranty: 5 Years
Applications: Food Processing Facilities, Commercial Kitchens, Cold Storage Facilities, Beverage Processing Plants, Pharmaceutical Manufacturing Facilities

$449.00

In Stock

Free Standard Shipping: Available on all RAB Lighting products.

Lead Time: 1–3 Business Days

Payment & Security

Trusted by contractors, businesses, and facility managers since 1996.

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.

View Shipping Policy →

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.

View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ↗ View Warranty Information
