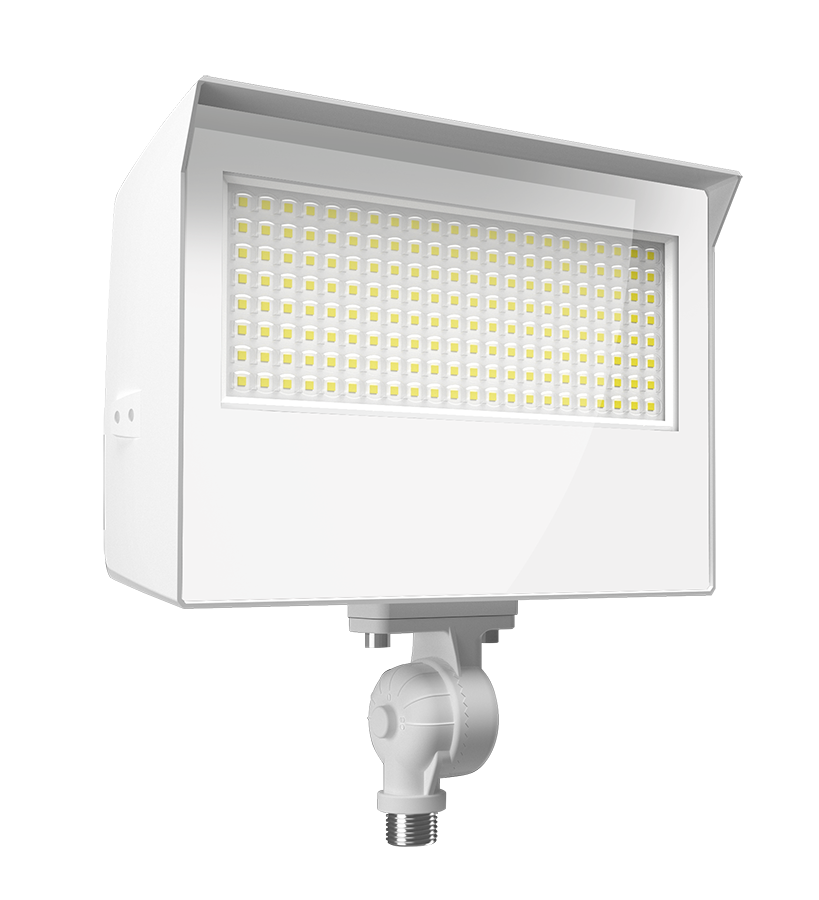

RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish

RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish

$200.00
$200.00
Skip to product information
RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
  • RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish
RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish

RAB X22-80W 5-Way Selectable LED Flood Light – 50W/60W/70W/80W Selectable – 3000K/4000K/5000K Selectable – 7193-12272 Lumens – 120-277V – 7H x 6V Distribution – Knuckle and Trunnion Mount Included – White Finish

UL Certified DLC Premium Listed Wattage & CCT Adjustable Button Photocell IP65 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

The RAB Lighting X22-80W 5-way selectable LED flood light features selectable 50W/60W/70W/80W wattages, selectable 3000K/4000K/5000K color temperatures, and delivers 7193-12272 lumens. It operates on 120-277V power, features a 7H x 6V distribution, includes knuckle and trunnion mounts, and has a white finish.

Specifications

  • Vendor: RAB Lighting
  • MPN: X22-80W
  • UPC: 192552032841
  • Product Type: Flood Light
  • Wattage: 50W, 60W, 70W, 80W
  • Input Voltage: 120-277V
  • Lumens: 7193-12272
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Beam Angle: 55°, 75°, 90°
  • Light Distribution: NEMA 7H x 6V
  • Dimming: 0-10V
  • Features: Wattage Selectable, CCT Selectable, Selectable On/Off Photocell, Beam Angle Adjustable
  • Certifications: UL
  • DLC Rating: DLC Premium
  • DLC Product ID: S-HDQRO9
  • IP Rating: IP65
  • Location Rating: Wet

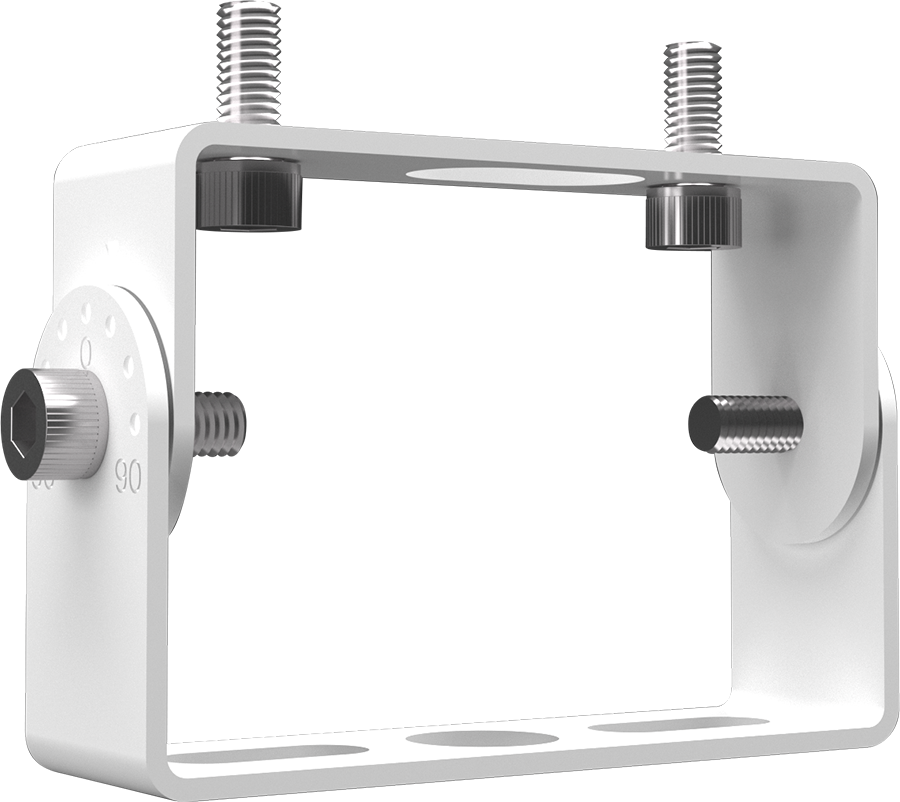

  • Mounting Type: Knuckle, Yoke
  • Housing: Die-Cast Aluminum
  • Lens: Tempered Glass
  • Operating Temperature: -22°F to 122°F (-30°C to 50°C)
  • Weight: 5.5 lbs
  • Finish: White
  • Dimensions: 10.75"H x 10"W x 4.125"D
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Building Perimeters, Parking Lots, Sports Facilities, Building Facades, Security Lighting
$200.00
$200.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ⧉ Family Specification Sheet ⚙ Installation Instructions ↗ View Warranty Information
