RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish

RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish

$385.00
$385.00
Skip to product information
RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
  • RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish
RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish

RAB XL22-150 LED Flood Light – Selectable 75W/100W/125W/150W – Selectable 3000K/4000K/5000K – 11190-23466 Lumens – 120-277V – Slipfitter and Trunnion Mount – Integrated Photocell – Bronze Finish

UL Certified Wattage & CCT Adjustable Button Photocell IP66 Rating 0-10V Dimmable Wet Location Rated 80+ CRI 120-277V 100000 Rated Hours

Description

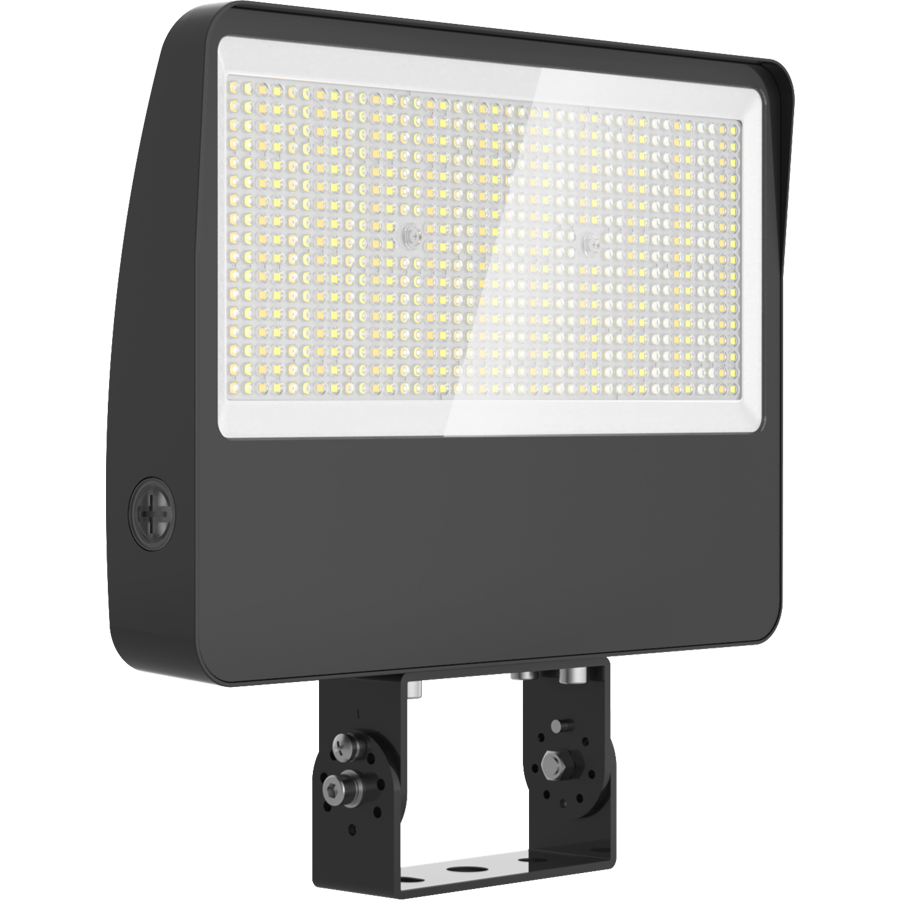

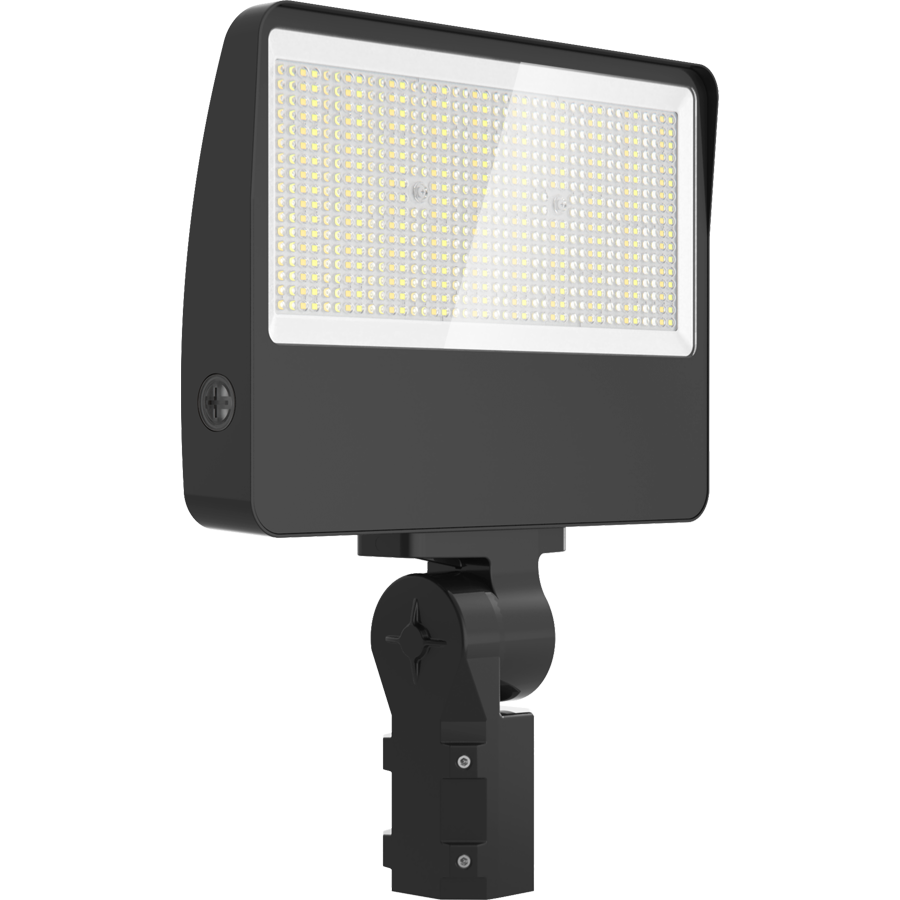

The RAB Lighting XL22-150 LED flood light features selectable 75W/100W/125W/150W wattages, selectable 3000K/4000K/5000K color temperatures, delivers 11190-23466 lumens, operates on 120-277V power, features slipfitter and trunnion mounting, includes an integrated photocell, and has a bronze finish.

Specifications

  • Vendor: RAB Lighting
  • MPN: XL22-150
  • UPC: 192552052382
  • Product Type: Flood Light
  • Wattage: 75W, 100W, 125W, 150W
  • Input Voltage: 120-277V
  • Lumens: 11190-23466
  • CCT: 3000K, 4000K, 5000K
  • CRI: 80+
  • Beam Angle: 55°, 75°, 90°
  • Dimming: 0-10V

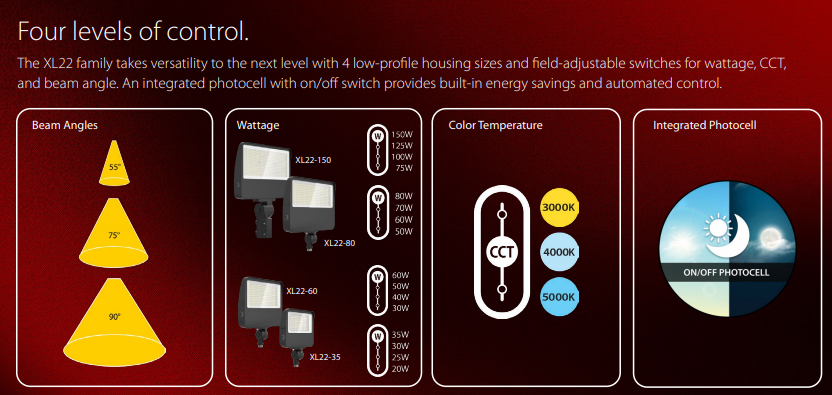

  • Features: Wattage Selectable, CCT Selectable, Beam Angle Selectable, Photocell
  • Certifications: UL
  • IP Rating: IP66
  • Location Rating: Wet

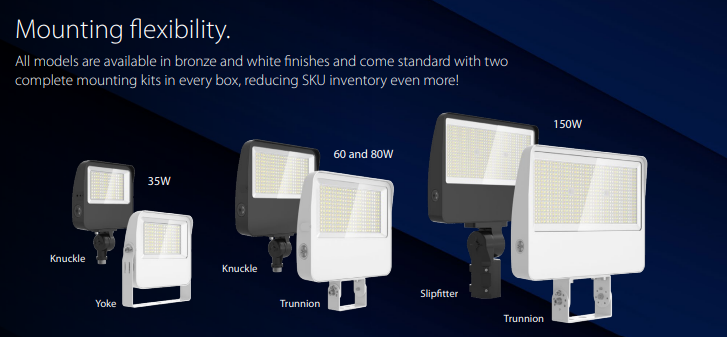

  • Mounting Type: Slipfitter, Trunnion
  • Housing: Die-Cast Aluminum
  • Lens: Polycarbonate
  • Operating Temperature: -40°F to 22°F (-40°C to 50°C)
  • Weight: 8.8 lbs
  • Finish: Bronze

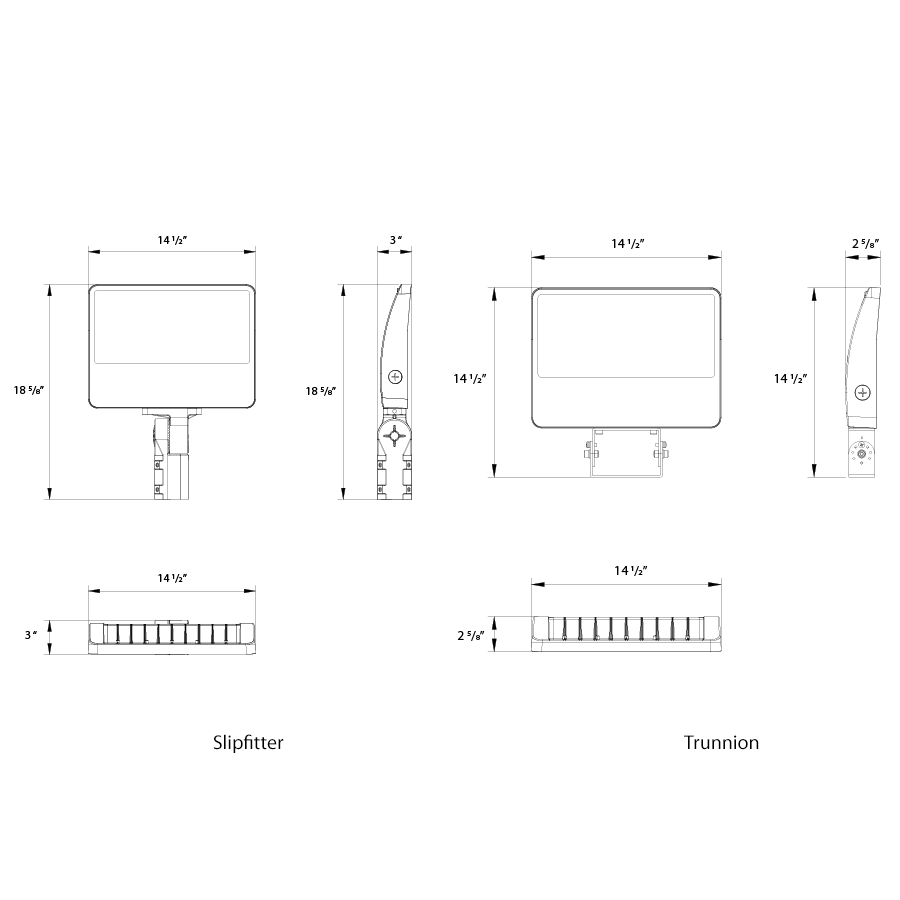

  • Dimensions: 14.5"W x 18.375"H x 2.625"D
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Building Perimeters, Parking Lots, Sports Facilities, Building Facades, Security Lighting
