RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish

RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish

$378.00
$378.00
Skip to product information
RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
  • RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish
RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish

RAB HAYBAY100N/D10/LOS High Bay – 100W – 4000K – 15785 Lumens – 120-277V – 0-10V Dimmable – LOSBAY Occupancy Sensor – White Finish

UL Certified 0-10V Dimmable Damp Location Rated 120-277V 100000 Rated Hours

Description

The RAB Lighting HAYBAY100N/D10/LOS LED high bay produces 15,785 lumens while operating at 100 watts with a 4000K neutral white color temperature. A built-in LOSBAY occupancy sensor provides occupancy-based lighting control, while 0-10V dimming supports commercial lighting systems.

Specifications

  • Vendor: RAB Lighting
  • MPN: HAYBAY100N/D10/LOS
  • UPC: 19813596969
  • Product Type: Round High Bay Light
  • Wattage: 100W
  • Input Voltage: 120-277V
  • Lumens: 15785
  • CCT: 4000K
  • CRI: 70+
  • Equivalent: 250W MH
  • Dimming: 0-10V
  • Features: LOSBAY 800 Sensor (Base Fixture Only)
  • Certifications: UL
  • Location Rating: Damp
  • Mounting Height: 15–20 ft
  • Housing: Die-Cast Aluminum
  • Operating Temperature: -40°F (-40°C) Minimum Starting Temperature
  • Weight: 14.7 lbs
  • Finish: White

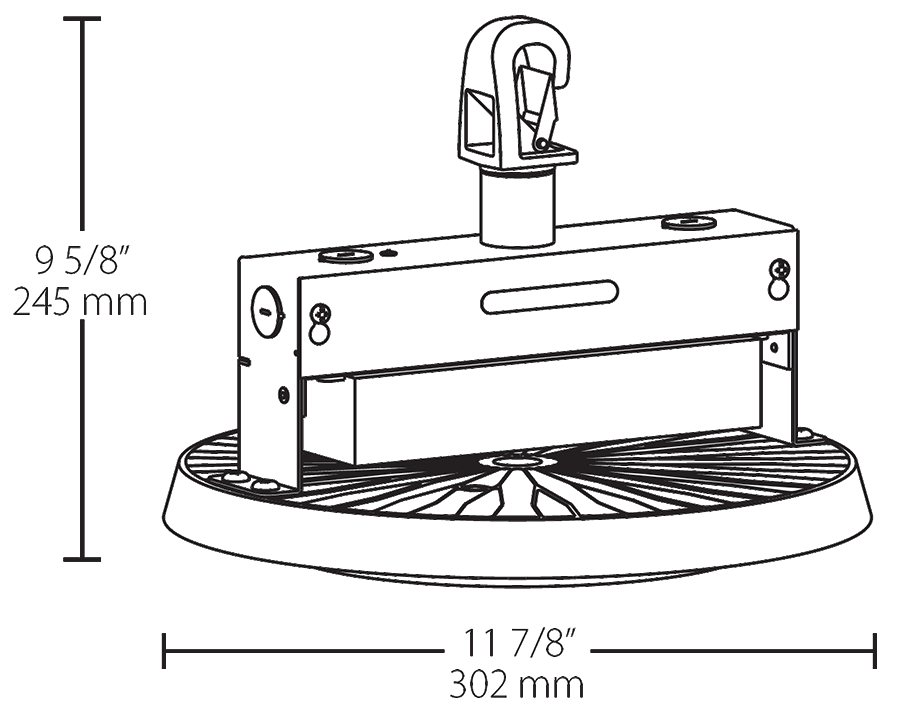

  • Dimensions: 11.875"D x 9.625"D
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Warehouses, Manufacturing Facilities, Distribution Centers, Gymnasiums, Industrial Facilities
$378.00
$378.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days

Payment & Security

American Express Apple Pay Discover Google Pay Mastercard PayPal Shop Pay Visa

Trusted by contractors, businesses, and facility managers since 1996.

Commercial Lighting Supply BBB Accredited Business

Project Support & Volume Pricing

Need help choosing the right product or pricing a larger order? Our team can assist with specifications, compatibility, fixture schedules, controls packages, contractor pricing, and bulk quantity quotes.

Request a Quote Need Help Choosing?
Shipping

Fast and reliable shipping from leading commercial lighting manufacturers. Shipping rates and delivery options are calculated at checkout. Most in-stock products ship within 1–3 business days.


View Shipping Policy →
Return policy

Purchase with confidence. Eligible products may be returned within 60 days of receipt. Our team is available to assist with returns, replacements, and manufacturer warranty support.


View Return Policy →

Downloads

📖 Product Brochure ↓ Specification Sheet ▦ Spacing Tables ◫ IES File ⚙ Installation Instructions ↗ View Warranty Information
