RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish

RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish

$884.00
$884.00
Skip to product information
RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
  • RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish
RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish

RAB IVGT5CU-70L750W4/WS2 T5 Concentrated Up-Light LED Parking Garage Light – 65W – 5000K – 7500 Lumens – 480V – 0-10V Dimmable – WattStopper Occupancy Sensor with 20ft Lens – White Finish

UL Certified California Title 24 Compliant Wattage Adjustable IP66 Rating 0-10V Dimmable Wet Location Rated 480V 100000 Rated Hours

Description

The RAB Lighting IVGT5CU-70L750W4/WS2 T5 concentrated up-light LED parking garage light delivers 7,500 lumens at 65W with a 5000K color temperature, operates on 480V, and features 0-10V dimming with a WattStopper occupancy sensor and 20-foot lens. It is designed for higher-voltage parking facilities requiring intelligent lighting control.

Specifications

  • Vendor: RAB Lighting
  • MPN: IVGT5CU-70L750W4/WS2
  • UPC: 19813785493
  • Product Type: Garage Light
  • Wattage: 69W
  • Input Voltage: 480V
  • Lumens: 7500
  • CCT: 5000K
  • CRI: 70+
  • Light Distribution: Type V Concentrated with Uplight
  • Dimming: 0-10V
  • Features: Wattstopper Sensor – 20 ft Mounting Height
  • Certifications: UL, Title 24
  • IP Rating: IP66
  • Location Rating: Wet
  • Mounting Height: 10–12 ft
  • Lens: Diffused Polymethyl Methacrylate (PMMA)
  • Operating Temperature: -4°F to 104°F (-20°C to 40°C)
  • Weight: 7 lbs
  • Finish: White

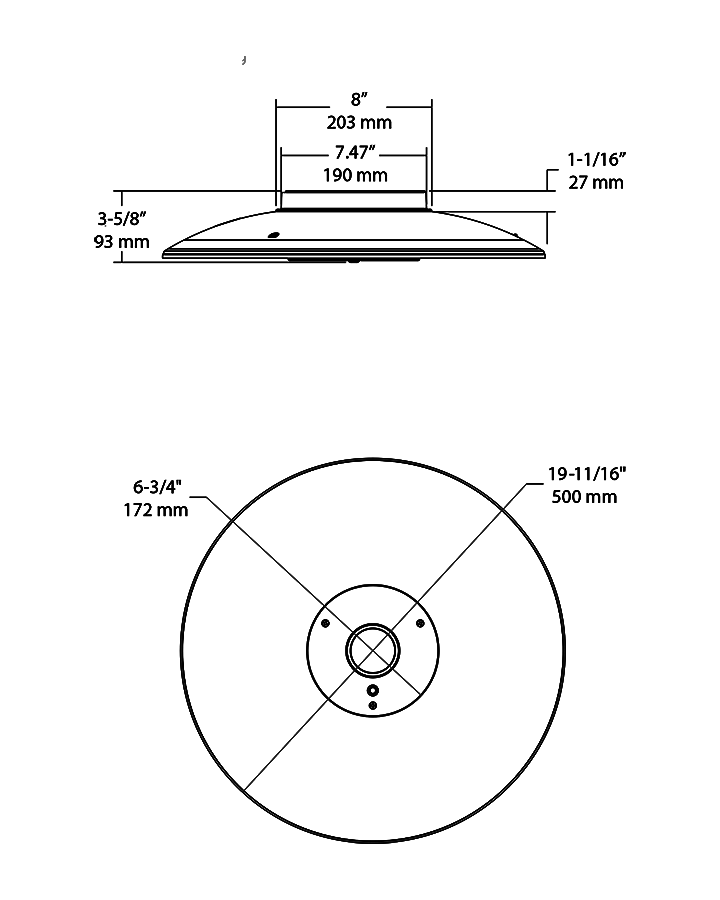

  • Dimensions: 19.6875"D x 3.625"H
  • Rated Hours: 100000
  • Warranty: 5 Years
  • Applications: Garages, Workshops, Warehouses, Utility Rooms, Storage Areas
$884.00
$884.00
In Stock
Free Standard Shipping: Available on all RAB Lighting products.
Lead Time: 1–3 Business Days
